Welcome to Rocket Runner!

By Jake Rogers

Tutorial Video

For those who prefer videos to textual guides, this guide will eventually have an accompanying YouTube video to follow along!

Chapter 0: Project Set-Up

We created a project for this game in one of the previous steps in the series, but we still have some housekeeping to take care of now that we have dropped into the editor.

1. Download and import the project assets.
2. Enable the Unity Input System.

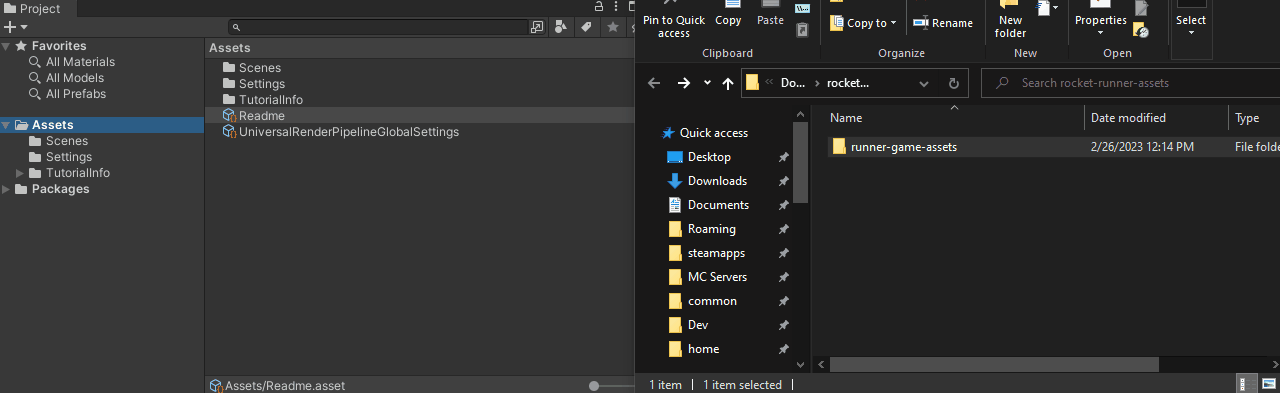

1) Import the Project Assets

We actually do not need many external assets here, but I have created a few so that we have something nicer to look at than some primitives.

Download the Assets Here

Inside the zip file you downloaded, there is a Models and Textures folder which you will need to move into your project's asset folder. You can do this by using your operating system's file browser, or by just dragging and dropping them into Unity's Project window.

What the Heck is this Stuff?

The Models folder contains an FBX (3D model file) Octahedron I made, which is a useful shape for indicating direction. We will use it for both our player and our missile objects.

The Textures folder contains a 128x128 grid texture which we will use for the ground, as it would be difficult to perceive movement against a ground with no texture. You may want to hang onto this texture, since it is a useful placeholder to have on hand in other projects.

2) Enable the Unity Input System

Legacy Input System

By default, Unity projects come loaded with what is called the Legacy Input Manager, a system which Unity used to use to allow reading player input into game scripts.

While it is still a fully servicable way to capture player input (and in many ways, easier to initially set up), 2019 brought forward the 1.0 release of the new Input System package. The Input System offers a significantly more sophistocated design for managing player input across multiple devices, processing player input, reading input events, and much more than can be explained here.

The new Input System should be considered the 'canonical' way of capturing player input. Even though it is a bit tougher to learn, the greater degree of control will be of great use when you expand into bigger projects!

Install the Input System Package

You can (and should) install the Input System package using the editor itself. Along the top, use the dropdown windows to select Window > Package Manager

From there, switch the Packages displayed from Packages: In Project to Packages: Unity Registry to see packages available for download. Scroll down to the Input System, select it, and install.

Once installation is complete, a dialog box will pop up informing you that Unity needs to be rebooted to enable the Input System backend, which you should do.

Input System Samples

Once rebooted, you can return to the package to download some Input System sample scenes, which can be useful for figuring out how to work with it in future projects. You do not have to do that for this guide.

Chapter 1: Scene Groundwork

Our game's environment will be a long road (going in the positive Z-axis direction) with two walls to keep the player in. That is easy enough to accomplish with a plane and two cubes!

We will also construct our player in this stage as well.

1. Create the Road
2. Create the Player
3. Apply Materials

1) Create the Road

In the Hierarchy Window, right-click on any empty space and create a plane (3D Object > Plane) and one cube (3D Object > Cube).

Select the two objects and reset their positions to (0, 0, 0) if they aren't already.

To make our road, we will resize the plane by setting its scale to (1.5, 1.0, 10). This will make our road a bit wider and much longer in the Z-Axis. Rename the Plane to Ground.

We want to create 'railings' along our road which will stop the player from going off of it- our cube will serve this purpose. Resize it to be the same length as the ground by setting its Z scale to 100*. Also make the cube wider by changing its X scale to 2.

* Note that the Plane primitive actually has a default size of 10 meters by 10 meters, and scaling it by 10 in the Z-Axis stretches it to 100 meters. This is why the cube must be resized to 100 and not 10, because the Cube is unitary (One meter cubed).

We will need to move the cube to block the edges of the plane, so change its position to be (8.5, 0.5, 0). Rename the cube to Right Wall

We also, of course, need a left wall. Make life easier for yourself by duplicating the right wall! Select the Right Wall and press Ctrl+D to duplicate the GameObject. Then, change the new wall's X Position to -8.5, and rename it to Left Wall.

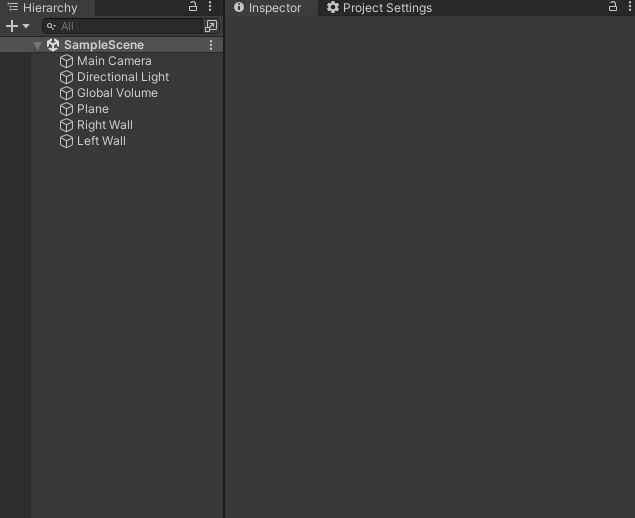

Grouping

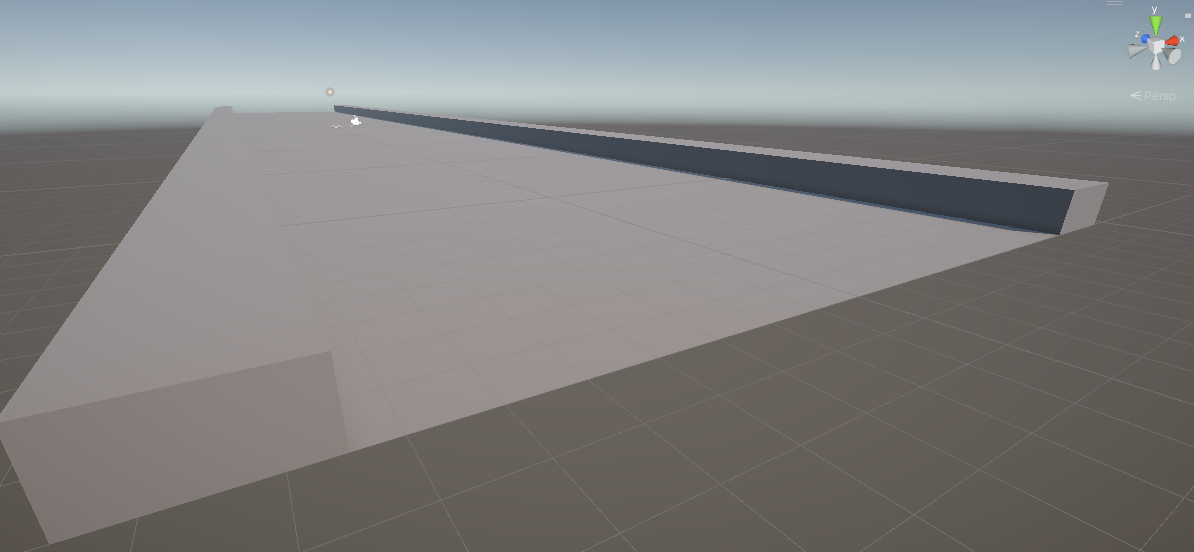

These three GameObjects make up our road. Since we realistically always want them to keep their positions and scales relative to eachother, we should 'group' them together by making them siblings of one GameObject.

Right-Click on the Hierarchy and select Create Empty, and rename the newly created GameObject to Road (Be sure to set its location to (0,0,0) if necessary) Select the Ground, Right Wall, and Left Wall and drag-and-drop them on top of the Road to make them children of that GameObject.

Now, if you select the Road object and move it, you will see all of its children move together with it! The Hierarchy also allows you to fold away children, which helps de-clutter the Hierarchy.

In fact, let's move the road forward on the Z-Axis by 45, since we want the start of the road to be near the origin point.

2) Create the Player

Let's get started on our player. As a reminder, they will be a small Octohedron floating a bit off the ground, traveling forward in the Z-Axis.

Player Model

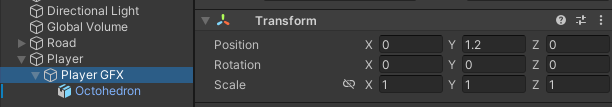

Start by creating an empty GameObject at the scene origin (0, 0, 0) and name it Player. Then, create a new empty GameObject as a child of the Player called Player GFX (Player Graphics).

In your Project window, navigate to the Models folder and drag-and-drop the Octohedron.fbx file onto the Player GFX object. You should see a rather large model appear. Select the newly created Octohedron model and scale it down to a more reasonable size, like (0.4, 0.4, 0.4).

As mentioned previously, we want the player to look like they are floating, select Player GFX and move its Y Position up. 1.2 is a good number.

Why Are we Doing it This Way?

You may be wondering why we have chosen to structure our player this way. Why not just use the Octohedron as our player root, for example? There is no immediate reason why you cannot do this, but it will bite you in the future.

For starters, many complex GameObjects will often need to consist of multiple GameObjects rooted under the same parent (similar to the Road we made earlier). Since children inherit their parent's Transforms (positions, rotations, and scales), we want to try and separate the hierarchy of unrelated items in our object as best as possible.

For example, later we will make our Octohedron model spin as it flies through the level. If we had everything parented to our Octohedron model, it would make everything on the player spin, which would be a huge mess!

Therefore, we create a GameObject specifically for the player's graphical representation, and put the Octohedron under that. By then moving the GFX up a bit, we move the model up as well. That way, any other graphical objects we have will all be vertically aligned, and our Octohedron can spin without any side effects.

Further, the position of the top-most GameObject in any group is often considered that collective object's 'True Position'. It is also often a useful notion and standard to have an object's position be at ground-level directly below its center of mass.

Our player is represented by a the Octohedron, but we would like its position to be described as somewhere along the X-Z plane, and the Y position is always 0 for simplicity's sake. So we keep the root GameObject at Y=0, but move the graphical representation of the player up a bit.

The benefits of this are a bit difficult to conceptualize out of context, but it will make more sense as we develop our player object (and as you make some inevitable mistakes in your own projects!). The way you organize and object's sub-hierarchy is very important when you start creating more complex things!

3) Apply Materials

Just like we did in the editor introduction, we will add some color to our scene by creating and applying some materials.

Add some color

Since this is already explained in Introduction to the Editor, we will be brief here.

Create a Materials folder and add three materials, Ground, Wall, and Player and apply them to their respective objects by drag-and-dropping in the Scene window. I personally used a light-cyan for the ground, a dark blue for the walls, and a magenta for the player.

Grid Texture

Ah, but I mentioned we had a texture for the ground, let's add this now! Textures need to be added to 3D objects through materials, so select your Ground material. On its Base Map property which you used to change its color, click on the selector button (a circle with a dot in the middle) and search for then pick the Grid-sprite texture.

The result that you get from doing this is... Not quite right. The texture is there, but it is stretched across the entire road! We were hoping to get a repeating 'tiled' texture.

This is easy to fix. Lower down in the material properties, change the Tiling settings to X: 3, Y: 20. This basically tells the shader that it should make the texture 3 times smaller in the X direction, 20 times smaller in the Y, and then repeat the texture to compensate. This resizes the texture to be 1:1 in scale tiled across the plane.

The numbers 3 and 20 are picked because the scale of our plane is (1.5, 1, 10)- we use the scale numbers then multiply by two to account for the length in both directions (Z translates to Y when it comes to the texture).

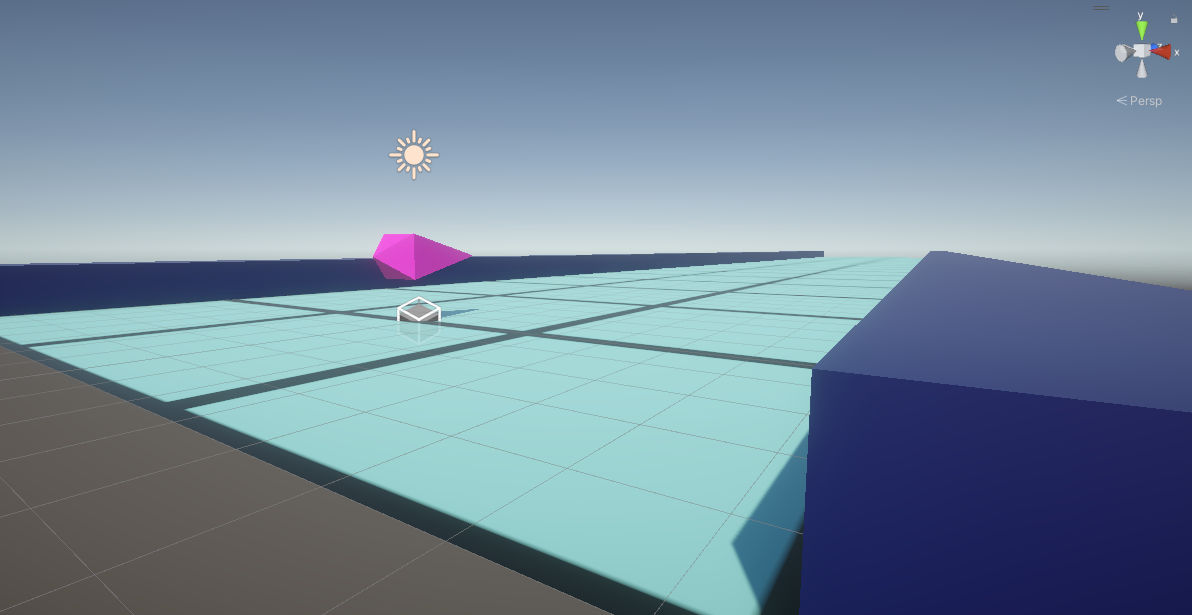

Your scene should look something similar to the following:

Chapter 2: Player Locomotion

We are ready to get our player moving! As previously mentioned, our player should constantly move forward down the road (positive Z)- they will have no control over that. They, however, will also be able to strafe left and right to control their position on the road (X axis), which will involve player input.

Additionally, we want our player to collide with the walls of the road so they cannot escape, and we will need to come up with some solution to have our camera follow the player as they sail off into the distance.

1. Set Up Physics for the Player
2. Moving Forwards
3. Bring the Camera With!
4. Player Actions
5. Strafing

1) Set Up Physics For the Player

As mentioned above, we need our player to collide with various objects throughout the scene to keep them in the playable space and for other purposes later. Of course, collision detection in 3D space is not a trivial matter, so we will use Unity's Physics to handle detection for us.

However, the movement of our player is not going to be physically simulated- in fact, we want the player to have tight control over their character, so we will be foregoing drag simulations, inertia, mass, etc., we only want collision.

Rigidbody Component

Select the Player GameObject and, using the Inspector, do Add Component > Rigidbody by using the button at the bottom of the Inspector. Rigidbodies also need a collider component somewhere on the same GameObject or a GameObject in its children.

Add a Collider

Where Does Our Collider Go?

Colliders dictate the physical space an object takes up within the Physics system, and are used for detecting collisions. Question is, which GameObject should we put our collider on?

The obvious answer is on the Octohedron model. After all, the player's collision ought to most closely resemble the player's graphical representation, right? That is reasonable, but in the future, we may want our player's model to rotate or move up and down for special effects, and we don't want to be radically changing the player's collision boundaries when we do that.

Imagine if our player was trying to navigate a very narrow corridor, and all of a sudden one of our graphical effects caused the Octohedron to spin sideways, which then collided them with a wall and forced them to fail.

No, we want to have collision without locking ourselves out of being able transform the player model. Realistically, we only want to designate an abstract space in the middle of the player which is used for collision detection- a 'hitbox' so to speak. Therefore, let's attach our collider to the Player root object. That way, we don't have to worry about any changes to our graphics objects affecting our collisions.

Select the Player and do Add Component > Box Collider from the Inspector. You should now see a green box in the scene for the player. Using the settings on the Box Collider component, we can adjust its size and center to vaguely wrap it around the Octohedron's normal position. The 'Edit Collider' toggle button allows you to use Gizmos to adjust it in the Scene view, which is highly recommended.

Position and size your box collider to the approximate size of the Octohedron, and drag the bottom side down a bit so it can collide with the walls better.

Collider Size

Protip: make the X & Z size of the collider slightly smaller than the actual Octohedron. As it turns out, your game will often feel better if the player's collision is a tad smaller than it seems it should be. Perfectly accurate colliders make it feel like you are "getting caught" on things all the time, and smaller colliders let players feel like they are narrowly dodging around things all the time.

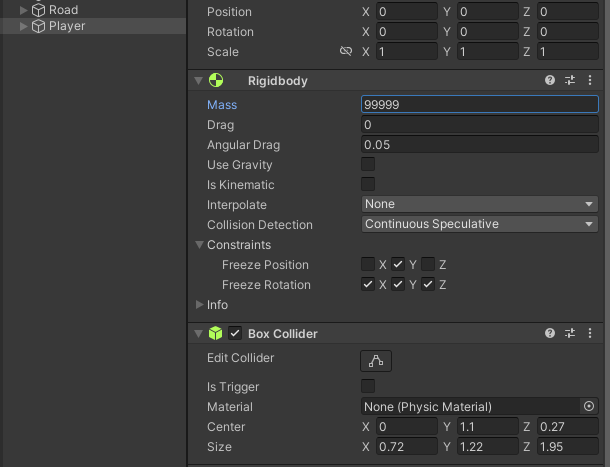

Here is my collider's configuration. Notice it extends a bit lower so we can get good contact with the walls, and it doesn't fuller enclose the actual model. You can copy my Center and Size settings if you are having difficulty getting yours right.

Rigidbody Configuration

Returning back to the Rigidbody component, our player now has physics. In fact, if you were to raise it a bit higher up and enter play mode, you would see it fall to the ground.

We need to make a few changes to prevent the physics system from making unwanted displacements on our Player:

1. Change the Mass to some large number, like 999999. This will allow our Player to push dynamic physics objects out of its way if necessary.
2. Disable Use Gravity. We do not desire any downwards velocity right now.
3. Change the Collision Detection mode from Discrete to Continuous Speculative. This gives our rigidbody a more reliable high-speed collision detection solution at a minor increase to computation. It should eliminate the possibility of tunneling through obstacles at high speed.
4. Fold out the Constraints property and freeze the Y position and all rotation axes. Again, our game does not make use of the vertical Y-Axis for now, so we will just lock that position. We also don't want our Player to start spinning from any applied forces.

2) Moving Forwards

It is not too difficult to get our player moving constantly forward, but we will need to use a script to drive this motion!

In your Project window, create a new folder Scripts. In that folder, Right-click for Create > C# Script. Name the script PlayerMovement.

using UnityEngine;

[RequireComponent(typeof(PlayerMovement))]
public class PlayerMovement : MonoBehaviour
{
    private Rigidbody _rigidbody;

    private void Awake()
    {
        _rigidbody = GetComponent<Rigidbody>();
    }

    private void FixedUpdate()
    {
        Vector3 newPosition = _rigidbody.position;   // Get the current position...
        newPosition += Vector3.forward;             // Add (0, 0, 1) to the newPosition in order to move it forward.

        _rigidbody.MovePosition(newPosition);
    }
}

Abstract

This script is pretty simple. In the Awake method (called when the object is first loaded in, but before any update calls), we get a reference to the rigidbody component attached to the same GameObject as the script- the one for our player.

In the FixedUpdate call, which occurs whenever a physics update occurs, we will take our current position, increment it by one in the z-axis, and move our rigidbody to the incremented position. Note that for the most part, any logic which involves calls or accesses to rigidbody components should always occur within the FixedUpdate call so that it can properly interact with other physics objects!

Did you notice the RequireComponent attribute above the class definition? When you specify required components on a MonoBehavior class, it tells Unity that your script should always be paired with a component of that type when attached to a GameObject. This prevents our call on line 10 from ever returning null and crashing our script.

Save the script. Back in the editor, select the Player and Add Component > PlayerMovement, then enter Play Mode, you will notice your player zoom off!

3) Bring the Camera With!

Obviously, we want to have our camera keep pace with the player!

A Bad Solution

An easy but bad way to accomplish this would be to just make the Main Camera a child of the Player GameObject, then offset it to a nice angle. However, this has two rather cumbersome side effects:

1. Parenting cameras directly to physics objects is janky. While it may or may not manifest itself here, it is possible to get some strange, jitter-type artifacts when you do this, so it is generally not great to have the camera be moving in association with the FixedUpdate loop.
2. This makes the Player 'responsible' for the Main Camera. From a design sense, we would like to decouple things as much as possible. In a practical sense, it means our player will need to constantly compensate for the camera. For example, if we delete the Player GameObject, we will need to detach the camera first or else our game will plunge into darkness with it (this is bad).

A Good Solution (Follow Script)

A better solution is to allow the camera to handle its own movement by feeding it an object to follow. This not only allows us to follow the player with low coupling, it also gives us some wiggle room to potentially have the camera look at other targets.

Essentially, we shall create a Script to move the camera around as though it were being held by an extremely diligent camera operator.

Create a new script, name it CameraRig

using UnityEngine;

public class CameraRig : MonoBehaviour
{
    public Transform FollowTarget;      // The transform this camera will follow
    [SerializeField] private Vector3 _followOffset = Vector3.zero;  // The local position that FollowTarget is followed from.
    [SerializeField] private bool _useAwakeOffset = true;   // Should the _followOffset be determined by my global position on awake?

    private void Awake()
    {
        if (_useAwakeOffset)
        {
            _followOffset = transform.position;
        }
    }

    private void LateUpdate()
    {
        if (FollowTarget != null)
            transform.position = FollowTarget.position + _followOffset;
    }
}

Abstract

Again, fairly simple. Note that the SerializeField attribute is being used to allow private-scoped variables to show up in the inspector- a useful trick if you want to populate script parameters without exposing their scope.

The option to set our _followOffset in the awake method is nice, since it lets us use the Scene view to pick a nice camera angle.

Note that we use the LateUpdate method to change our camera's position. The LateUpdate tick always occurs after that of Update and FixedUpdate (If one occurs that frame), but just before the frame is written to the screen. This makes it a good time to reposition our camera so it has the most up-to-date position.

Info

If our script changed the position of the camera in the regular Update tick, it is possible that something else could change the Player's position before the screen write, which would result is small inaccuracies. Small inaccuracies on the player's camera produce very ugly jitter, so try to avoid them.

Apply the New Script

We will not actually apply this script directly to the camera. Instead, we will create a Camera Rig object, put the script on it, then make the Main Camera a child of that. You can do this easily by right-clicking the Main Camera and picking Create Empty Parent, then add the new script to the object.

Inspector-Assigned Properties

Whenever we create a public or SerializedField member in one of our scripts and it is not assigned to through the code, we are usually expecting to manually assign something to that property per instance using the Inspector.

In this circumstance, we want to drag-and-drop the Player GameObject (and thusly, its transform) into the Follow Target property to specify what the camera will follow.

Forgetting to assign your properties can lead to null reference exceptions!

Ensure that our Use Awake Offset flag is on, and position the Camera Rig at a nice position to view the Player and the upcoming road. You will want to rotate the camera on the X-axis a bit to get a downward view- it is probably better to apply that rotation to the Main Camera itself.

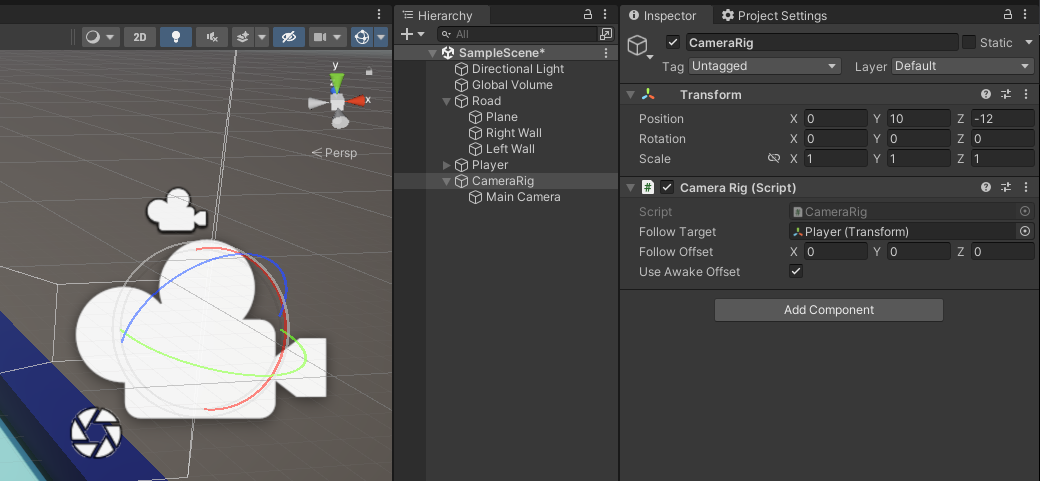

I put my Camera Rig at (0, 10, -12) and set the X-axis rotaton of the Main Camera to 23 degrees. I also changed the FOV of the Main Camera to 52 degrees to get a nice view.

4) Player Actions

We need to improve our PlayerMovement script to allow the player to strafe left and right. Before that, we must create an Input Actions asset- a map of accepted Player Inputs to action events which we can hook our scripts into.

If you wanted to create a new Input Actions asset (we do not), one can be created in the Project window by doing Create > Input Actions.

Instead, we can actually trick Unity into giving us a pretty competent default. On your Player object, add a Player Input component. You will see a small message box in the Player Input component informing you that no Input Actions exist, select "Create Actions...". The default name is fine here.

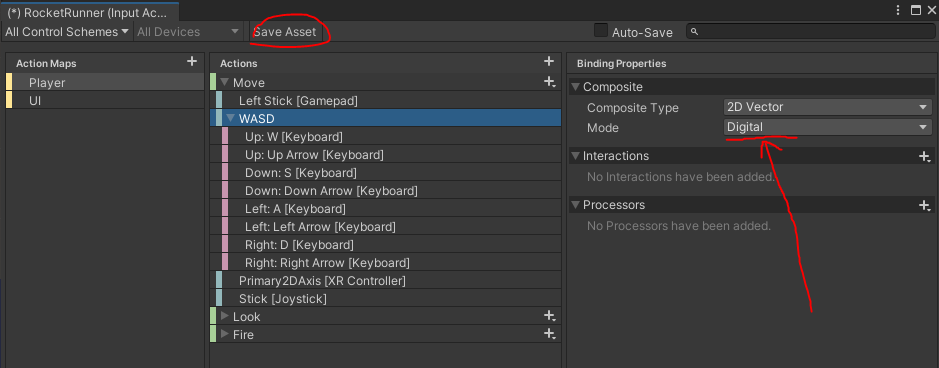

Input Actions asset was created in your Assets directory. Double-click it in the Project window to pull it open. You will see it has created two Action Maps (different controls for different contexts), select the Player one.

By default we were given some Actions for Moving, Looking, and Firing, of which we will only use one (There is little harm in keeping the others, hang onto them in case you wish to expand this project in the future). Expand out the Move Action.

Each Action (green) is composed of a Binding (blue), which may be composited (purple) from a few inputs. Giving an action multiple bindings is great for allowing the same action to be expressed by more than one input device. By default, our Move action can be inputted via the Keyboard WASD or arrow keys, a gamepad stick, a VR controller, and even a joystick!

We could definitely spend much longer than necessary here detailing the Input System. For now, select the WASD binding and change its Mode from Digital Normalized to Digital. Since we only plan on using the horizontal axis of the Move input vector, we do not care about normalizing the value. Be sure to hit the Save Asset button- it will not auto save for you.

Make some time to read some dedicated articles about the Unity Input System. It has a learning curve, but it is very powerful, and you will make some progress after some frustrating trial and error.

Recommended Reading: Game Dev Beginner's "Input In Unity Made Easy"

If you created the Input Action asset via the Player Input component as we did, the component's Actions parameter should already be populated. If not, select the one we just made now.

5) Strafing

Now that we prepped our user input, we can upgrade our PlayerMovement script to allow the player to move left and right.

Strafe Movement

Simply enough, when we are in the process of calculating the next position of our player on any given frame, we should also add an offset on the X axis.

using UnityEngine;
using UnityEngine.InputSystem;

public class PlayerMovement : MonoBehaviour
{
    private Rigidbody _rigidbody;

    private float _strafeInput = 0f;

    private void Awake()
    {
        _rigidbody = GetComponent<Rigidbody>();
    }

    private void FixedUpdate()
    {
        Vector3 positionOffset = Vector3.zero;
        positionOffset += Vector3.forward;             // Add (0, 0, 1) to the newPosition in order to move it forward.
        positionOffset.x += _strafeInput;              // Add player's horizontal input to X. 1 if right, -1 if left.

        _rigidbody.MovePosition(_rigidbody.position + positionOffset);
    }

    private void OnMove(InputValue inputValue)
    {
        _strafeInput = inputValue.Get<Vector2>().x;
    }
}

Abstract

Whenever the PlayerInput component on our Player GameObject sees receives an event from the player performing an input, it will broadcast a message to any script on its GameObject. By giving our PlayerMovement script a method for void OnMove(InputValue), we can tell our script to react to the player updating their movement inputs.

In this circumstance, we just want to read in the value of the player's horizontal input to a stored variable. Note that we need to add using UnityEngine.InputSystem for the InputValue object.

We also slightly change the way that we calculate the new position. Instead, we compute an offset which is then added to the rigidbody's position in the MovePosition call. This will be a better-expressed approach for when we add speed control.

_strafeInput, then, will be equal to -1 if the player inputs left, 1 if right, and 0 when nothing is held. From there, we add their input to the newPosition.x in order to apply some horizontal velocity for each frame!

Speed Adjustment

Let's consider for a second- how actually fast is our player moving? Well, all of our logic for moving the player forward is being incremented in the FixedUpdate method. As the name suggests, this method is called at very exact, fixed intervals: exactly every 0.02 seconds by default, or 50 times a second.

This means that our player has a forward speed of 50 units (meters) per second. This is very awkward, since it is way too fast and we would have to use small multipliers to slow it down.

To account for this, we should multiply our per-update offset to be one-unit per second, which we can do by just multiplying the whole thing by that fixed update interval, which Unity happens to keep in a variable at Time.fixedDeltaTime.

private void FixedUpdate()
    {
        Vector3 positionOffset = Vector3.zero;
        positionOffset += Vector3.forward;             // Add (0, 0, 1) to the newPosition in order to move it forward.
        positionOffset.x += _strafeInput;              // Add player's horizontal input to X. 1 if right, -1 if left.

        positionOffset *= Time.fixedDeltaTime;

        _rigidbody.MovePosition(_rigidbody.position + positionOffset);
    }

After making this change, you will notice that your player now moves at exactly one meter per second forward- very slow, but it gives us a good platform to multiply by integers and get a predictable speed.

Variable Speed

By using some [SerializeField]-tagged fields, we can apply some multipliers to the forward and horizontal contributions to our positionOffsets and produce different speeds.

PlayerMovement.cs (frag)

...
public class PlayerMovement : MonoBehaviour
{
    [SerializeField] private float _forwardSpeed = 16f;
    [SerializeField] private float _strafeSpeed = 10f;

    private Rigidbody _rigidbody;
...

    private void FixedUpdate()
    {
        Vector3 positionOffset = Vector3.zero;
        positionOffset += Vector3.forward * _forwardSpeed;             // Add (0, 0, 1) to the newPosition in order to move it forward.
        positionOffset.x += _strafeInput * _strafeSpeed;              // Add player's horizontal input to X. 1 if right, -1 if left.

        //positionOffset *= Time.fixedDeltaTime;

        _rigidbody.MovePosition(_rigidbody.position + positionOffset);
    }
...

In the Inspector, you should now be able to modify the _forwardSpeed and _strafeSpeed to get different respective speeds!

Since we did the groundwork of multiplying it against a unit-per-second speed, the resultant speed will be in X-meters-per-second. We ALSO know that a single segment of our road is 100 meters long, so each road segment will provide 100/X seconds of gameplay. Knowing how long it takes for a player to traverse your levels is useful to keep in mind when designing your game's content. Pretty neat!

Chapter 3: Points

In our game, the player will need to collect points which, in turn, will give them missiles. In order to destroy Kill Walls which occasionally show up with increasing levels of hitpoints, they will need to have collected enough points or else they will run into the wall and lose.

So, in this chapter we will create some pickups which will eventually spawn missiles for the player to hang onto for the next chapters!

1. Create Point Pickup Objects
2. PointPickUp.cs Script
3. Spruce Up the Pick Ups

1) Create Point Pickup Objects

This will be a pretty simple GameObject, we will use a sphere to represent the PickUp, and a large trigger collider to describe how close the Player must be to collect it.

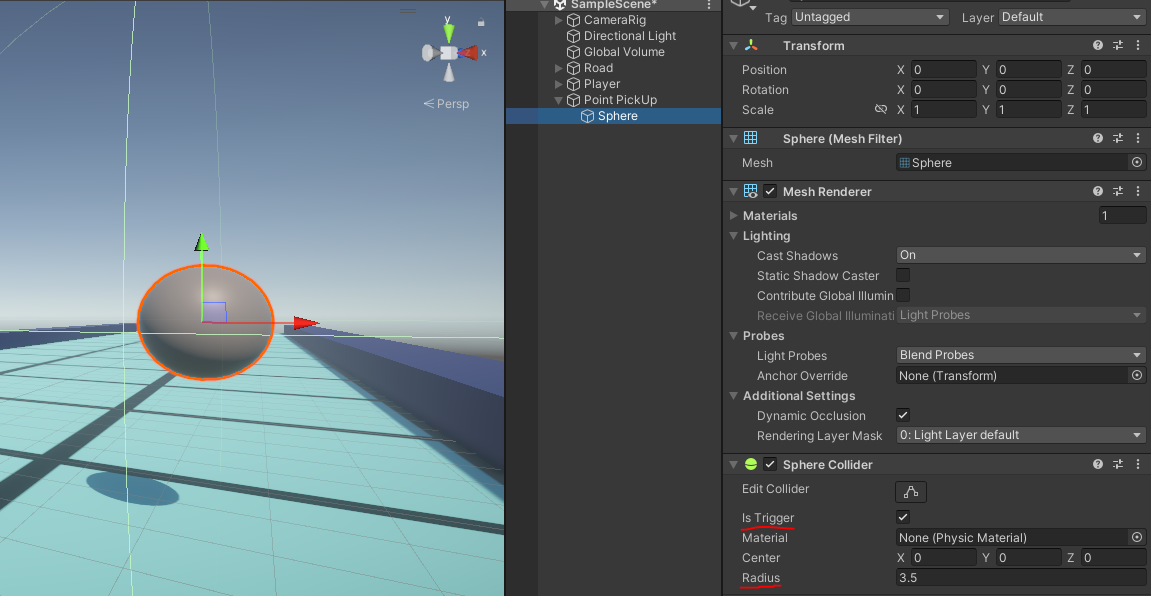

In your Hierarchy, create a new empty GameObject and name it Point PickUp. Then, create a Sphere object as a child of it.

On that Sphere child, remove it's Sphere Collider, we will be making one on the parent object.

On the Point PickUp GameObject, Add Component > Sphere Collider. This Sphere Collider will be the volume the Player must enter in order to collect the PickUp.

On the collider, enable the Is Trigger property. This will stop the collider from registering collections on rigidbodies, but still allow it to detect collisions that we can hook into from our scripts.

We will also make this trigger larger than the Pick Up's visual representation so that the player doesn't need to precisely collide with it. I changed the radius to 3.5.

Position the pick up somewhere along and above your road- I put mine at a height of Y = 2. Also, make a material for this pick up to give it some color! I chose to make mine yellow with a tiny bit of metallic Metallic Map = 0.37.

2) PointPickUp.cs Script

This is going to sound strange, but before we work on this script, we need to at least create the PlayerMissiles.cs script and put it on our Player, it will make sense in a moment.

Just like before, create a new script called PlayerMissiles.cs, as well as PointPickUp.cs. On the Player GameObject, Add Component > PlayerMissiles. We will code this script later.

Scripting

On the Point PickUp GameObject, Add Component > PointPickUp and open it for editting.

This script will be set up to watch for any GameObject with specifically a PlayerMissile component to enter its trigger boundary. When that occurs, the PickUp will tell said PlayerMissile script to increment its points by one, then the PickUp should disappear.

using UnityEngine;

public class PointPickUp : MonoBehaviour
{
    [SerializeField] private int _pointValue = 1;

    private void CollectPoint(PlayerMissiles playerMissiles)
    {
        Debug.Log("I have been collected!");
        // TODO: Add a point to playerMissiles.
    }

    private void OnTriggerEnter(Collider other)
    {
        // Try to find PlayerMissiles Component on entering GO.
        PlayerMissiles playerCheck = other.GetComponent<PlayerMissiles>();

        // If component was found...
        if (playerCheck != null)
        {
            CollectPoint(playerCheck);  // Collect the point.
        }
    }
}

Abstract

The OnTriggerEnter method is called during the FixedUpdate call when something enters the trigger collider on the same GameObject as the script. The Collider other is a reference to the collider component which invoked the collision.

From the collider, we can query its GameObject for other components by using GetComponent<type>, so we check to see if the incoming object has a PlayerMissiles component, and run a routine for collecting the point if it does.

It is very important that we verify the incoming collision does actually contain a PlayerMissiles component. GetComponent can return NULL if no component of the specified type is found on other, which would then trigger a NullReferenceException if we tried to invoke methods on it! Remember that any GameObject with a collider on it could invoke the OnTriggerEnter method by simply moving into its bounds- we want to filter to only those with PlayerMissiles scripts (one, in our case- the Player!).

Since our PlayerMissiles script does not yet have a method for receiving points, we will write ourselves a note to implement that later.

Prefabs

We are going to want to have multiple copies of these pick-ups, but we want them to all generally operate the same way with similar parameters. This makes them a good candidate to turn into a prefab.

Prefabs are GameObjects which are saved somewhere in your Assets folder. Copies of the prefab can be instantiated into the scene which will inherit all of the properties and structure of the prefab. Additionally, if you make any changes to a prefab, all of the instances of that prefab in any scene are updated to match. This obviously makes them very powerful for reuse.

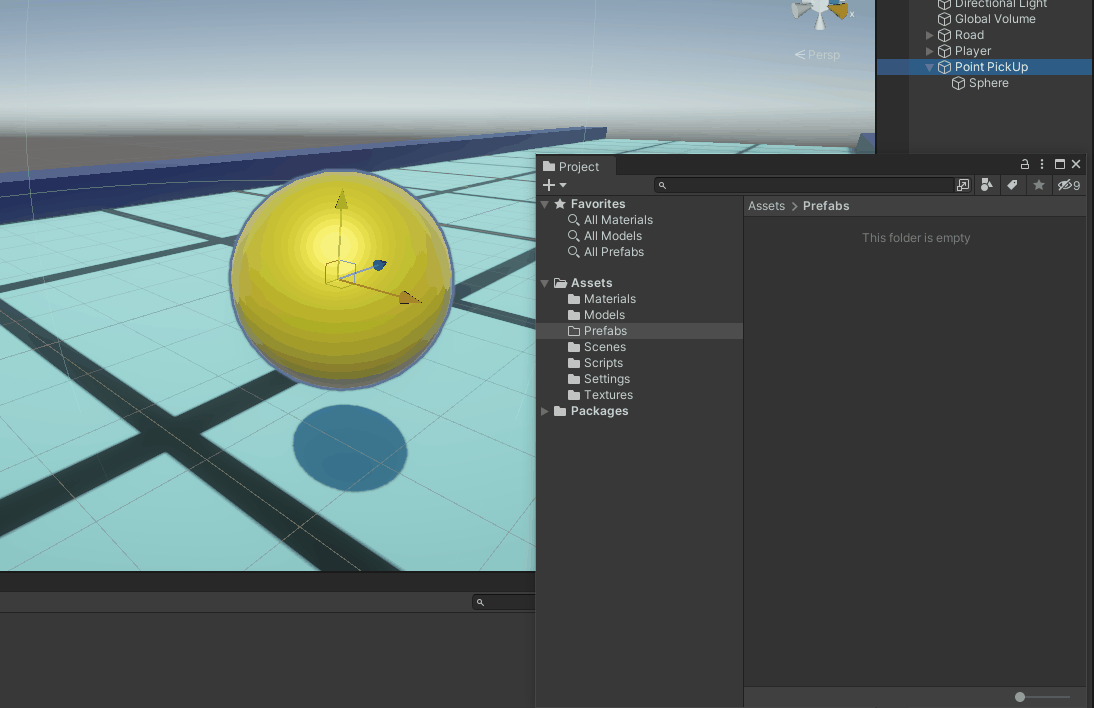

In your Project window, Create > Folder, name the folder Prefabs, and open it. Then, drag-and-drop the Point PickUp GameObject from the hierarchy into the empty space in the Prefabs folder. You should then see the new Prefab appear in the Project window and the Point PickUp GameObject in the Hierarchy should turn blue to indicate it is an instance of a prefab.

Now, try creating some new instances by drag-and-dropping from the Project window or Ctrl+D on the existing instance, and arrange the pick ups in a line.

Prefab Editor

IMPORTANT: When you want to make a change to a prefab that effects all instances, you should double-click it in the Project window to open the prefab editor. This will properly propagate all changes to any instances.

If you do want a change on an instance of a prefab to propagate to all other instances, you can use the overrides drop down in the Inspector to do so, but this may have unexpected behavior. Therefore, it is always best to use the prefab editor to edit prefabs.

3) Spruce Up the Pick Ups

Now normally, it is not a great idea to invest a bunch of time polishing individual game elements when you are still prototyping. We could, for instance, decide later that we do not actually want to have these pick ups, and then all that effort would go down the drain. Or worse: we could become too attached to something because we have spent too much time refining it and be resistant to changing it out for something better.

However, it doesn't hurt to add a bit of refinement to something you know you want to keep, and I personally find it to be a good break from prototyping that keeps me invested in the project.

Move To Player Effect

Instead of the PickUp objects simply disappearing from thin air when we collect them, we will have them fly into the player and be collected when they reach them.

public class PointPickUp : MonoBehaviour
{
    [SerializeField] private int _pointValue = 1;
    [SerializeField] private float _flyAcceleration = 32f;
    [SerializeField] private float _flyCollectionDistance = 0.5f;

    private float _flySpeed = 0f;

    private PlayerMissiles _targetPlayerMissiles;

    private void Update()
    {
        if (_targetPlayerMissiles != null)
        {
            _flySpeed += _flyAcceleration * Time.deltaTime;

            transform.position = Vector3.MoveTowards(
                transform.position,
                _targetPlayerMissiles.transform.position,
                _flySpeed * Time.deltaTime
            );

            if (Vector3.Distance(transform.position, _targetPlayerMissiles.transform.position) <= _flyCollectionDistance)
            {
                CollectPoint();
            }
        }
    }

    private void CollectPoint()
    {
        Debug.Log("I have been collected!");
        // TODO: Add a point to playerMissiles.
        Destroy(gameObject);
    }

    private void OnTriggerEnter(Collider other)
    {
        // Try to find PlayerMissiles Component on entering GO.
        PlayerMissiles playerCheck = other.GetComponent<PlayerMissiles>();

        // If component was found...
        if (playerCheck != null)
        {
            _targetPlayerMissiles = playerCheck;
        }
    }
}

Abstract

When the PlayerMissiles component is detected, we keep track of it in a class member. Whenever that class member _targetPlayerMissiles is not null, we will move the position of the pick up closer to the player's position by an accelerating velocity per frame. Lastly, when the distances are lower than some set distance, we then trigger the collection.

Note that we multiply the acceleration and the velocity by Time.deltaTime. This number is equal to the number of seconds between the last frame and this frame, which has the effect of converting the accleration / velocity to a per-second quantity instead of a per-frame quantity.

Note that increasing the velocity each frame gives our pick up some more character by introducing a ramp up to the collection. It also guarantees that the pick up will eventually catch up to the Player even if they are initially faster.

Go in Play Mode and give it a try! You can tweak the _flyAcceleration to get some different results. You may want to push back or increase the FOV on your camera to be able to observe the movement better.

Slow Turn Effect

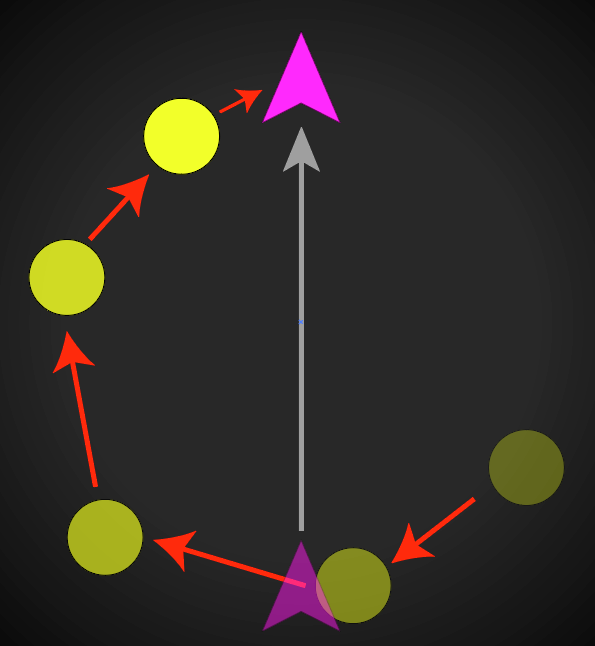

Right now, the pick up always moves in a straight line from its position to the Player. We can add even more character to the flight by making the velocity direction slowly correct itself over time, which will give the movement a more circular arc than a J-shaped one.

To do this, we will first determine the initial direction that the pick up must travel to get to the Player. Since our Player is traveling forward at a considerable speed, that initial direction will become incorrect pretty quickly, and the pick up will likely miss the player.

As time goes along, we will gradually correct the velocity direction towards the actual direction from the pick up to the Player, which will cause it to smoothly hook around and eventually reach the player.

using UnityEngine;

public class PointPickUp : MonoBehaviour
{
    [SerializeField] private int _pointValue = 1;
    [SerializeField] private float _flyAcceleration = 32f;
    [SerializeField] private float _flyCollectionDistance = 0.5f;
    [SerializeField] private float _flyDirectionCorrection = 2f;

    private Vector3 _velocityDirection = Vector2.zero;
    private float _flySpeed = 0f;

    private PlayerMissiles _targetPlayerMissiles;

    private void Update()
    {
        if (_targetPlayerMissiles != null)
        {
            // Accelerate the speed
            _flySpeed += _flyAcceleration * Time.deltaTime;

            Vector3 targetPosition = _targetPlayerMissiles.transform.position;

            // Incrementally correct the current velocity towards the correct one
            Vector3 correctDirection = Vector3.Normalize(targetPosition - transform.position);
            _velocityDirection = Vector3.MoveTowards(_velocityDirection, correctDirection, _flyDirectionCorrection * Time.deltaTime);

            // If the position is negative, flip the y velocity positive to keep it positive.
            if (transform.position.y <= 0f)
            {
                _velocityDirection.y = Mathf.Abs(_velocityDirection.y);
            }

            // Move the transform along the velocity direction at _flySpeed speed.
            transform.Translate(_velocityDirection * _flySpeed * Time.deltaTime);

            // Check the distance, collect if close enough.
            if (Vector3.Distance(transform.position, targetPosition) <= _flyCollectionDistance)
            {
                CollectPoint();
            }
        }
    }

    private void CollectPoint()
    {
        Debug.Log("I have been collected!");
        // TODO: Add a point to playerMissiles.
        Destroy(gameObject);
    }

    private void OnTriggerEnter(Collider other)
    {
        // Try to find PlayerMissiles Component on entering GO.
        PlayerMissiles playerCheck = other.GetComponent<PlayerMissiles>();

        // If component was found...
        if (playerCheck != null)
        {
            _targetPlayerMissiles = playerCheck;
            _velocityDirection = Vector3.Normalize(playerCheck.transform.position - transform.position);
        }
    }
}

Abstract

If you subtract a vector position from the vector target, the result will be a vector which would move position to target. If you then normalize that vector, you will get the direction from position to target. Commit this to memory, it is a very important technique!

When the trigger initially occurs, we will store the initial direction in _velocityDirection.

Then, per-update, we will slowly move that initial direction towards the correct direction needed to intercept the Player as it moves along. All the while, we move the pick up along the ever-correcting direction vector by the accelerating speed.

Additionally, since our player's position is at y=0 and our points are above the ground, our pick-up may try to go below the ground. If it does, we will fix this issue by simply making the y component of our _velocityDirection positive. This also gives us an interesting bounce effect.

Do not worry if this is a bit advanced for you right now. As long as the you get the general idea, you will learn how to manipulate vectors with practice.

As you will come to find out, the effort required to make something look good is often a bigger ordeal than just making the thing in the first place! This is why it is a good idea to typically save refinement for later stages so your effort is not wasted!

Chapter 4: Missiles

If you go back to the short preview shown in this series' introduction, you can see that when the player collects the pick ups, small missiles appear spinning around them.

To accomplish this we will create a new script which will handle collecting points, spawning missiles, and positioning them around the player. We will also need to create those missile prefab objects, which will contain a basic script that will be evolved in the next chapter.

1. Missile Prefab
2. Point Collection Response
3. Missile List
4. Easy Visual Improvements

1) Missile Prefab

In order to instantiate a GameObject at runtime from a script, we (generally) need to save that object ahead of time as a prefab. So let's go ahead and make our missile objects now.

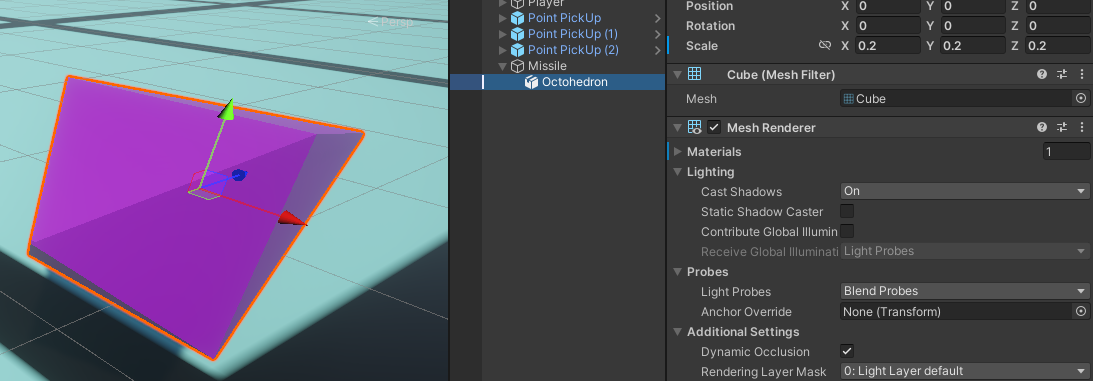

Create an empty GameObject called Missile, and attach the Octohedron model to it as a child just like we did for the Player (though we do not necessarily need to make a ... GFX object this time). Create a new material to color it.

For now, we will also create a Missile.cs script that will be attached to our Missile object, though it will not do anything currently. We will need the class to exist since our script which we will use to manage the player's missiles will need to maintain a list of Missile objects.

Create a new Missile.cs script, and add it to the Missile object as we have done before. Then, save the missile in your Prefabs folder! You can then delete the missile object from the Hierarchy.

2) Point Collection Response (PlayerMissiles.cs)

Whenever we want to construct some kind of behavior which manages a collection of objects for some specified task, it is almost always a good idea to create a script which decouples the behavior of managing the group from managing the individuals. In this scenario, we need a script to operate individual missiles (Missiles.cs), and then a script to handle collecting, spawning, and choosing which missiles to fire- essentially a manager.

We will modify our placeholder PlayerMissiles script for this purpose. It will be a component of the Player GameObject and will be responsible for handling the tasks mentioned above. The first thing we need it to do is let our pick up objects send a message to the script when they are collected.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class PlayerMissiles : MonoBehaviour
{
    private int _missilePoints = 0;

    public void AddPoint(int points)
    {
        _missilePoints += Mathf.Max(0, points);
        Debug.Log(_missilePoints);
    }
}

    private void CollectPoint()
    {
        _targetPlayerMissiles.AddPoint(_pointValue);
        Destroy(gameObject);
    }

Since our pick up script already stores a reference to the PlayerMissiles class it is chasing, adding points to the class is as easy as providing a public method for it to do so. We also use Mathf.Max to ensure the points added is at least 0.

I have not mentioned this yet, but we allowed each pick up to have it's point total be a property changeable in the Inspector. This allows us to make pick ups which are worth more points. Lets go ahead and make a pick up which is worth three points.

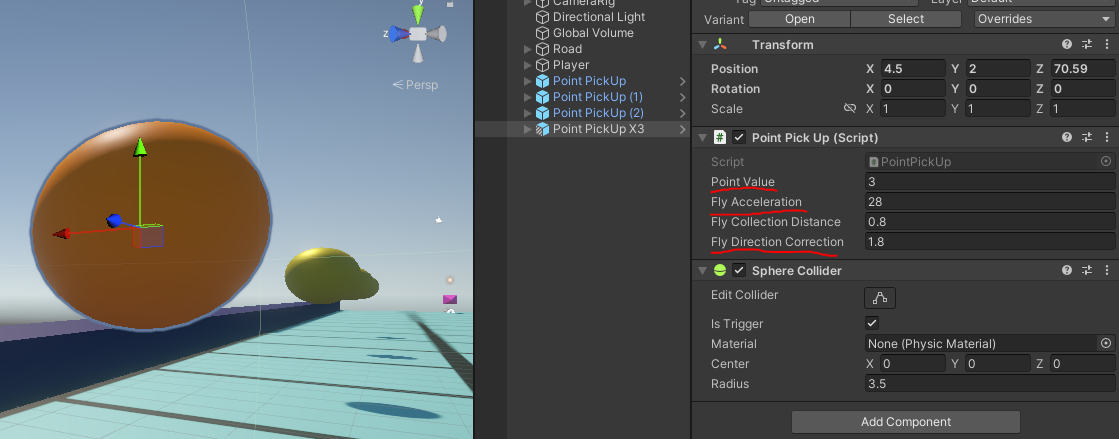

Select one of your pick ups in your scene, Ctrl+D to duplicate it, move it, and change its Point Value property to 3. Also create and apply a new material to color it differently.

Now, drag it down to your Prefabs folder again and you will get a new prompt, asking if you would like to make this an original prefab or a variant. A variant prefab functions similarly to class inheritance, it defines the variant as a subtype of a base prefab by providing a few overrides that make it distinct. The variant option makes perfect sense here, so use that!

Optionally, you can also make it a tad bigger and lower it's flight speed / correction to give it a weightier feel as it flies toward the player.

3) Missile List

The number of points our player has will correspond to how many missiles they currently have ready at any given time. For now, we will just have one point correspond to one missile. This could be a problem in the future if we have hundreds of points (from both a visual and performance stand point), but it will be fine for now.

Our PlayerMissiles script will need to create missiles in order to sync up the missile count with their point count. Further, it will need to keep track of those existing missile objects so that they can be fired later when we eventually implement the kill walls, which we will do by keeping a list of them.

Before we do some scripting, we also need to designate GameObject in our hierarchy that we want to act as a parent to our spawned missiles, which will also dictate where they appear positionally.

To accomplish this, we shall create a new empty object under the Player called Missile Store, which we will move half way between the ground and the our Player GFX transform.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class PlayerMissiles : MonoBehaviour
{
    [SerializeField] private GameObject _missilePrefab;
    [SerializeField] private Transform _missileStore;
    [SerializeField] private float _missileSpawnRadius = 3f;

    private List<Missile> _missileList;
    private int _missilePoints = 0;

    public void AddPoint(int points)
    {
        _missilePoints += Mathf.Max(0, points);

        SyncMissilesToPoints();     // Create missiles to catch up with the points
    }

    private void Awake()
    {
        _missileList = new List<Missile>();
    }

    /// <summary>
    /// Creates more missiles to make the missile count equal to the number of missile points.
    /// </summary>
    private void SyncMissilesToPoints()
    {
        int missilesToCreate = _missilePoints - _missileList.Count;     // # of missiles needed to sync

        for (int i = 0; i < missilesToCreate; i++)
        {
            CreateMissile();
        }
    }

    /// <summary>
    /// Instantiates a missile, assigns a random offset to prevent stacking, and adds it to the list.
    /// </summary>
    private void CreateMissile()
    {
        // Creates a new instance of the prefab as a child of _missileStore
        GameObject missileGO = Instantiate(_missilePrefab, _missileStore);
        Missile missile = missileGO.GetComponent<Missile>();

        Vector3 randomOffset = new Vector3(
            Random.Range(-_missileSpawnRadius, _missileSpawnRadius),
            0f,
            Random.Range(-_missileSpawnRadius, _missileSpawnRadius)
        );

        missile.transform.localPosition = randomOffset;

        _missileList.Add(missile);
    }
}

Abstract

This script gets pretty big, but that is because we are also trying to work some better structure here by using functions and some documentation.

First, we create a reference to our missile prefab and the transform we would like to place them under. These will both be populated using the Inspector. We will discuss _missileSpawnRadius in a second.

The _missileList is a collection of any active missiles we have spawned. Note that even though it is a collection of Missile objects, the objects have an implied GameObject attached to them since they are a MonoBehavior, and storing them as the Missile component keeps us from having to constantly use GetComponent.

The CreateMissile method uses the Instantiate method to create a new instance of our _missilePrefab as a child of _missileStore. We then also generate a random offset for its local position so that all of the missiles are not spawned right on top of each other (Note that the local position is where it lies relative to its parent, similar to when you change the position of children in the Hierarchy). The Missile object of the newly created instance is added to our list.

The SyncMissilesToPoints method will determine how many missiles need to make the count in the list one-to-one with the _missilePoints. It needs to be called whenever our point count is changed, so we make a call to it in AddPoints.

As a nice touch, we also introduce some C# XML documentation- something that is very worthwhile as your project grows and gets larger. You will want to be able to keep notes on what complex functions and scripts do. The XML documentation also adds intellisense information to anything you put it on- hover your mouse over CreateMissile() in your editor and you'll see!

Learn more about C# XML documentation

On the Inspector for the Player, you will need to set the Missile Prefab and Missile Store properties or else you will get a null reference exception. Drag-and-drop from the Project window Prefab folder to set the prefab and drag-and-drop the Missile Store GameObject to get the transform.

Test your game and you will see new missiles appearing as you collect points, nice!

4) Easy Visual Improvements

While we are at it, we will apply some script-driven animation to our missiles in order to give them a bit more life.

Store Rotation

By rotating our Missile Store we can create the effect of our missiles orbiting around the Player which looks pretty cool. It is also very simple to implement because of how our Player's hierarchy is organized.

...

[SerializeField] private float _storeSpinSpeed = 180f;

...

private void Update()
{
    _missileStore.Rotate(new Vector3(0f, _storeSpinSpeed * Time.deltaTime, 0f));
}

Abstract

The Y-Axis rotation applied per frame gives us a Z-X plane rotation of the missile store, which gives us our orbiting motion. Multiplying the _storeSpinSpeed by Time.deltaTime turns it into a degrees-per-second speed instead of a degrees-per-frame speed.

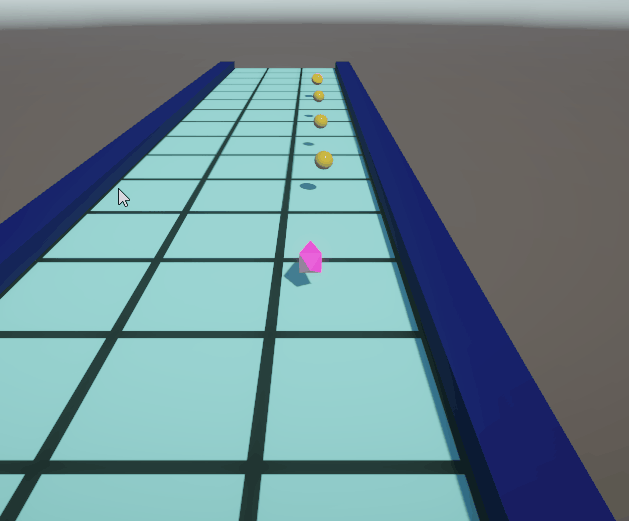

Now, if you tried this in Play Mode, you likely noticed a small issue...

The rotation of the store also causes our missiles to point in the wrong direction! This is easy to fix, we will just have the missiles also correct their rotation to be forward-facing each frame inside of Missile.cs.

using UnityEngine;

public class Missile : MonoBehaviour
{
    private void Update()
    {
        transform.rotation = Quaternion.LookRotation(Vector3.forward, Vector3.up);
    }
}

Abstract

Each frame, set the global rotation of the missile to be a rotation which faces down the positive Z axis.

Missile Spin

We can also add a little more character by having our missiles spin on the Z-axis passively.

using UnityEngine;

public class Missile : MonoBehaviour
{
    [SerializeField] private float _spinSpeed = 200f;

    private float _currentSpinAngle = 0f;

    private void Awake()
    {
        // Apply a random starting angle
        _currentSpinAngle += Random.Range(0f, 359f);
    }

    private void Update()
    {
        transform.rotation = Quaternion.LookRotation(Vector3.forward, Vector3.up);  // Reset rotation

        _currentSpinAngle += _spinSpeed * Time.deltaTime;   // Increment the spin angle by time difference
        transform.Rotate(0f, 0f, _currentSpinAngle);        // Rotate to spin angle
    }
}

Abstract

Note that the Transform.Rotate(Vector3) method typically applies a rotation additive to the existing one, but since our assignment on line 17 overrides the previous rotation, the spin needs to be stored in a variable.

We also so Time.deltaTime being used in a slightly different way here. If you increment a variable by Time.deltaTime each frame, that variable effectly acts as a stopwatch by accumulating the number of real-world seconds.

Lastly, we also apply a random starting angle to the missile so that missiles added in the same frame are generally not in phase with each other, which may looks weirdly artifical.

---

Previously, I mentioned that it is generally best not to work on visual refinement while prototyping, since we may wind up needing to scrap entire features later down the line. However, I frequently break this rule.

I personally find that occasionally making visual refinements keeps me invested in longer projects- having something nice to look at is very appealing and makes you feel like you are getting somewhere, which combats burn-out a bit. It also gives you something neat to show your friends, which very much helps with encouragement (if you have good friends that is!).

It is a fine line that you will have to set for yourself, but I generally find easy slam-dunks like what we just implemented to be worth the time every once in a while.

Chapter 5: Kill Walls

Our primary obstacle, Kill Walls, will be the basis of our game's challenge. Kill Walls will have a specific amount of Hit Points (HP) that need to be defeated using missiles, or else the Player will run into them and lose. Each missile collected from a pick up will damage a wall for 1 HP.

When the player approaches a wall, they will automatically fire as many missiles as necessary to destroy the wall. If they cannot, they will collide with it and be destroyed!

1. Kill Wall Prefab
2. Player Killing Behavior
3. Missile Launching

1) Kill Wall Prefab

Road Extension

Actually, before we make our first Kill Wall, go ahead and extend your road if you haven't already. Use Ctrl+D to duplicate the Road group and move it down the Z-Axis such that it is seamless with the original road.

Wall

As usual, we will create an empty GameObject that will house everything related to the Kill Wall- name the new empty GameObject Kill Wall.

To the Kill Wall object, add a Cube 3D Object as a child of it and scale it so that it spans the entire road and is much taller. Giving it some thickness will help with collision detection as well. Go ahead and make a material to color the cube as well- red is nice and menacing!

We actually want the collider of the wall to be on the Kill Wall GameObject, not the Cube, so delete the Cube one and add an appropriately sized BoxCollider to the Kill Wall. We do this because colliders will only report collisions to scripts immediately on the same GameObject, not their parents.

Create a new script KillWall.cs and add it to the Kill Wall, we will implement it later.

Shoot Trigger

As mentioned before, the player will automatically fire their missiles any Kill Wall it approaches. To accomplish this, we will create a trigger collider some distance in front of any kill wall which will tell the player to shoot at the wall when they enter it.

Create a new empty GameObject as a child of the Kill Wall and name it Shoot Trigger. Move it to be a fair distance in front of the wall, and AddComponent > Box Collider. Change the parameters of the collider to make it also span the entire road so the player cannot miss it.

Create a new script ShootTrigger.cs and add it to the Shoot Trigger, we will implement it soon.

Turn your Kill Wall object into a prefab so we can use it again later!

2) Player Killing Behavior

We will add some behavior to allow the Kill Walls to destroy the player when they touch them.

In order to do this, we need to describe how the Player itself should 'die'. For our basic prototype of this game, we will simply destroy the GameObject that represents them, but we will need to put that code somewhere. Ideally, the Player will have a publically-scoped method to trigger a death.

It wouldn't make much sense for our PlayerMovement or PlayerMissiles script to also handle death behavior, so we will add a new script to the player, Player.cs, which will handle general player behavior, such as dying.

using UnityEngine;

public class Player : MonoBehaviour
{
    public void Die()
    {
        Destroy(gameObject);
    }
}

Then we can have our KillWall script detect collisions with anything that contains a Player script and trigger the Die method if so.

using UnityEngine;

public class KillWall : MonoBehaviour
{

    [SerializeField] private int _hitPoints = 5;

    private void OnCollisionEnter(Collision collision)
    {
        Player playerCheck = collision.gameObject.GetComponent<Player>();
        if (playerCheck != null)
        {
            playerCheck.Die();
        }
    }
}

Abstract

Once again, we make sure that we check that the opposing collider is actually a Player class by comparing it against null, which avoids a possible null reference exception should something else incidentally collide with the wall.

3) Missile Launching

In a similar vein, our ShootTrigger script shoud detect a Player entering its trigger volume and tell the player to launch as many missiles as necessary to destroy the KillWall it is attached to. This will take a bit more work, though!

This is going to require a few changes to four scripts: KillWall, Missile, PlayerMissiles, and ShootTrigger.

• KillWall will need to be able to be damaged and track its damage.
• Missile will need to be given behavior to chase after a kill wall and damage it when it is close enough
• PlayerMissiles needs a public method to fire exactly the right amount of missiles to kill a wall.
• ShootTrigger needs to track which wall it is registered to and trigger the method mentioned above for PlayerMissiles when the player enters.

We double-back to our KillWall.cs and make a few changes to track HitPoints, take damage, and allow destruction.

using UnityEngine;

public class KillWall : MonoBehaviour
{
    [SerializeField] private int _hitPoints = 5;

    public void TakeDamage(int damage)
    {
        _hitPoints -= damage;

        if (_hitPoints <= 0)
        {
            Die();
        }
    }

    private void Die()
    {
        Destroy(gameObject);
    }

    private void OnCollisionEnter(Collision collision)
    {
        Player playerCheck = collision.gameObject.GetComponent<Player>();
        if (playerCheck != null)
        {
            playerCheck.Die();
        }
    }

    public int HitPoints { get => _hitPoints; }
}

Abstract

Note at the bottom that we create a Property called HitPoints which exposes _hitPoints to public reading without allowing it to be publically writable.

Next, we will create a method on our Missile script which allows it to fire itself at a provided KillWall object.

using UnityEngine;

public class Missile : MonoBehaviour
{
    [SerializeField] private int _attackDamage = 1;
    [SerializeField] private float _spinSpeed = 200f;
    [SerializeField] private float _flySpeed = 30f;
    [SerializeField] private float _detonateDistance = 3f;


    private KillWall _killWallTarget;
    private float _currentSpinAngle = 0f;

    public void FireAtWall(KillWall killWall)
    {
        _killWallTarget = killWall;
        transform.parent = null;    // Unparent so it does not follow the player
    }

    private void Awake()
    {
        _currentSpinAngle += Random.Range(0f, 359f);
    }

    private void Update()
    {
        if (_killWallTarget != null)
            FlyAtTarget();
        else
            DoIdleAnimation();
    }

    private void FlyAtTarget()
    {
        Vector3 targetPosition = _killWallTarget.transform.position;

        // Move towards wall
        transform.position = Vector3.MoveTowards(transform.position, targetPosition, _flySpeed * Time.deltaTime);

        transform.LookAt(targetPosition, Vector3.up);   // Look towards the wall we are flying at

        // If close enough, do damage and destroy myself.
        if (Vector3.Distance(transform.position, targetPosition) <= _detonateDistance)
        {
            _killWallTarget.TakeDamage(_attackDamage);
            Destroy(gameObject);
        }
    }

    private void DoIdleAnimation()
    {
        transform.rotation = Quaternion.LookRotation(Vector3.forward, Vector3.up);

        _currentSpinAngle += _spinSpeed * Time.deltaTime;
        transform.Rotate(0f, 0f, _currentSpinAngle);
    }

    public int AttackDamage { get => _attackDamage; }
}

Abstract

Note that we moved the original Update behavior to DoIdleAnimation, which is sidelined one the missile has a valid target. This actually works pretty similarly to our PointPickUp's chase behavior.

Also note that we unparent the missile from the Player when we fire, so its position is not affected by the player's movement any longer.

Next, we need to change the PlayerMissiles script to have a public method to dispatch exactly enough missiles to destroy a given KillWall:

...

public void FireMissilesAtTarget(KillWall killWall)
{
    // Total strength of all fired missiles.
    int cumulativeDamage = 0;

    // Iterate through all missiles BACKWARDS through the list.
    // Stop if cumulative damage is high enough to destroy wall or
    // we run out of missiles.
    for (int i = _missileList.Count - 1; i >= 0 && cumulativeDamage < killWall.HitPoints; i--)
    {
        Missile nextMissile = _missileList[i];

        nextMissile.FireAtWall(killWall);
        cumulativeDamage += nextMissile.AttackDamage;

        _missileList.RemoveAt(i);
        _missilePoints -= nextMissile.AttackDamage;
    }
}

...

Abstract

We iterate through each missile in the _missileList from back to front, firing them at the wall until the cumulative damage of the fired missiles is enough to kill the wall or we run out.

We go from back to front because it is generally more performant to unshift items from a container at the back than the front.

It is also important to remember to update our number of _missilePoints after firing off a missile. The number of points a missile was worth is its AttackDamage, though that will always be 1 for now.

Lastly, we just need to update the ShootTrigger to know which KillWall it is attached to and tell the PlayerMissiles to FireMissilesAtTarget when it enters the trigger volume.

using UnityEngine;

public class ShootTrigger : MonoBehaviour
{
    [SerializeField] private KillWall _attachedKillWall;

    private void OnTriggerEnter(Collider other)
    {
        PlayerMissiles playerMissilesCheck = other.GetComponent<PlayerMissiles>();

        if (playerMissilesCheck != null)
        {
            playerMissilesCheck.FireMissilesAtTarget(_attachedKillWall);
        }
    }
}

Drag-and-drop the Kill Wall to the Attached Kill Wall property.

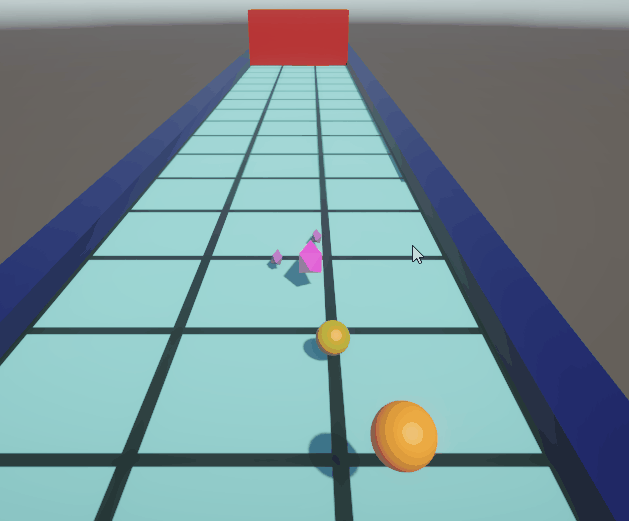

This was pretty code-heavy, but the result is pretty cool! You should now notice some of your collected missiles destroying the wall as you approach.

Try collecting less than five missiles as well. You will see your missiles launch, but not enough will be fired to destroy the wall.

It looks pretty rough right now. This guide will eventually be expanded with a module dedicated to visual effects and particles!

Chapter 6: User Interface

One major problem with our game is that the player cannot see how many missiles are required to destroy any given Kill Wall. Likewise, they cannot see how many missiles they own without painstakingly counting.

We can fix both those problems by adding a rudimentary user interface which displays counters for wall HP and the missile count.

1. UI for Kill Walls
2. UI for Missile Count

1) UI for Kill Walls

To keep things simple, we will use world space canvases that allow us to project UI elements on physical planes in our scene.

Create the UI

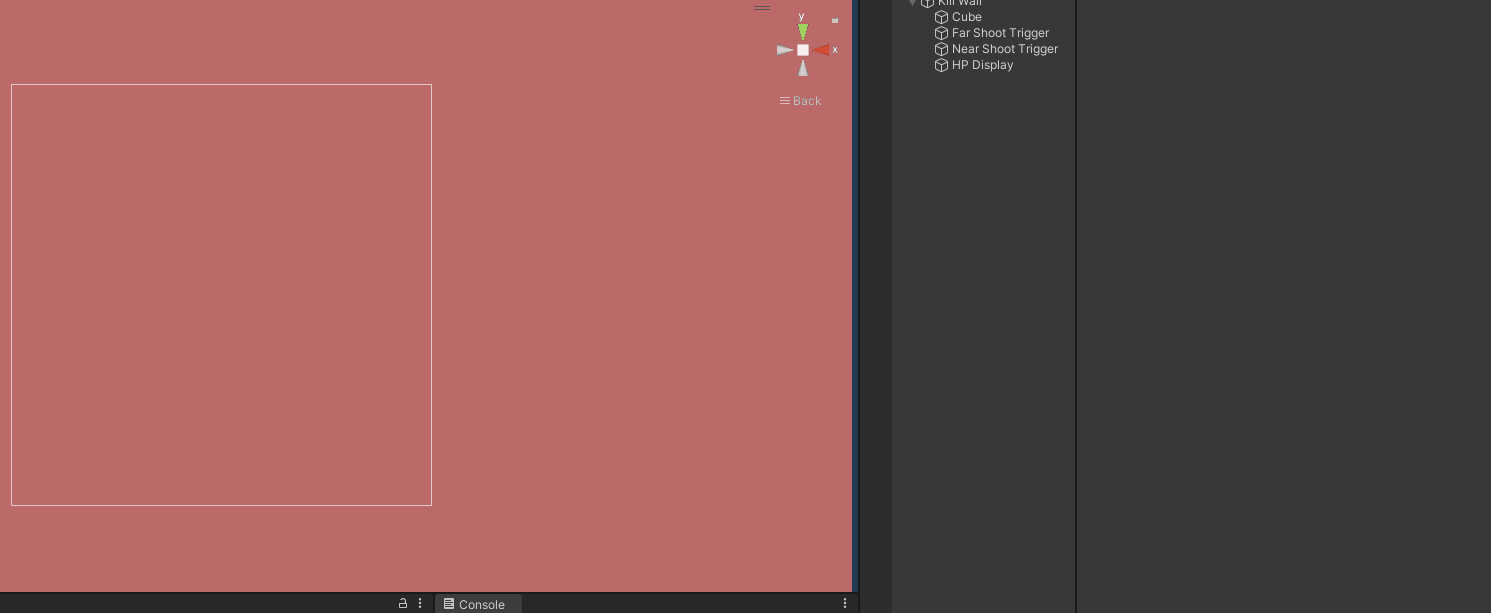

On the Kill Wall prefab, create a new UI > Canvas, which serves as a root for all of our UI elements. In order to make the UI appear in world space, change the Canvas' Render Mode to World Space.

Now we can position our canvas, which is wildly too large. Reset the Rect Transform component (by using the ellipses button in the top right of the component), and change the width and height to 5. Then, move the canvas so that it is just in front of the Kill Wall's -Z face center (0, 4, -2.6).

You can then add a UI > Panel object to the canvas, which will help our text stand out from the Kill Wall. It looks a little weird and pixelated- set the Pixels Per Unit Multiplier on the Image component to 5 and it will look correct.

Now, to the Panel, add a UI > Text - TextMeshPro. You will need to do a series of things to get it to fit correctly within the Panel.

Text Mesh Pro

Note that the first time you add a Text - TextMeshPro object, you will get a pop up saying you need to import the essentials package, which must do to get a working font. You do not need to import the extras.

1. In the top-left anchor box, hold ALT+Shift and click on the bottom-right option to set the element to stretch across the entire Panel.
2. Check the Auto-Size property.
3. In Auto Size Options, set Min to 1 to allow the the text to shrink into the box.
4. Change the text to "0".
5. Change the alignment to middle and center.

You should now see your "0" text is centered within the panel taking up as much space as is allowable.

Program the UI

We need the text of our Text(TMP) object to be the numerical HP of the Kill Wall it represents, which is easy enough to do.

In order to make the KillWall HP monitorable, we must make one small adjustment to the script.

using System;
using UnityEngine;

public class KillWall : MonoBehaviour
{
    public Action<int> OnHitPointsChanged;

    [SerializeField] private int _hitPoints = 5;

    public void TakeDamage(int damage)
    {
        _hitPoints -= damage;

        if (_hitPoints <= 0)
        {
            Die();
        }

        OnHitPointsChanged?.Invoke(HitPoints);
    }

    ...

Abstract

Actions allow other scripts to 'subscribe' to them and register some kind of response whenever the action is invoked. In this example, our KillWall will invoke the OnHitPointsChanged method, transmitting the number of HitPoints in a signal to any scripts which are subscribed to the Action.

Our UI object can subscribe to the action, read the int trasmitted with the invocation, and update the UI accordingly.

This is significantly more efficient than having the UI constantly check the value of the the KillWall's HitPoints each frame and updating the text accordingly. Actions are great for these circumstances where things only need to periodically respond in reaction to an event.

Also note the strange notation of the ? operator. Actions are a nullable type, which means that they can have a valid value or be null. Using the ? operator with a nullable type will only execute the instruction if the given nullable is non-null.

Learn more about events, delegates, and actions

Learn more about nullable types

Create a new script KillWallUI and attach it to the Text(TMP) object.

using UnityEngine;
using TMPro;

[RequireComponent(typeof(TextMeshProUGUI))]
public class KillWallUI : MonoBehaviour
{
    [SerializeField] private KillWall _killWall;

    private TextMeshProUGUI _tmp;

    private void Awake()
    {
        _tmp = GetComponent<TextMeshProUGUI>();
    }

    private void OnEnable()
    {
        _killWall.OnHitPointsChanged += UpdateText;
        UpdateText(_killWall.HitPoints)
    }

    private void OnDisable()
    {
        _killWall.OnHitPointsChanged -= UpdateText;
    }

    private void UpdateText(int hitPoints)
    {
        _tmp.text = hitPoints.ToString();
    }
}

Abstract

To register a function to an Action, we += a function with an appropriate parameter list (that being one int type) to the Action. Whenever you register to an Action, must also deregister the function should the script ever be destroyed or be disabled. This is why this behaviour is done on every enable or activate (which also trigger on awake and on destroy respectively).

Changing the text is simple as can be: Just set the text property to a string of the transmitted integer.

Do not forget to set the _killWall property of the KillWallUI script instance to that on the Kill Wall object!

Not only can we now see the amount of HP a wall has, but it will actively count down to 0 as it takes damage!

2) UI for Missile Count

This will work almost identically to the UI rig we created for the Kill Wall.

Create the UI

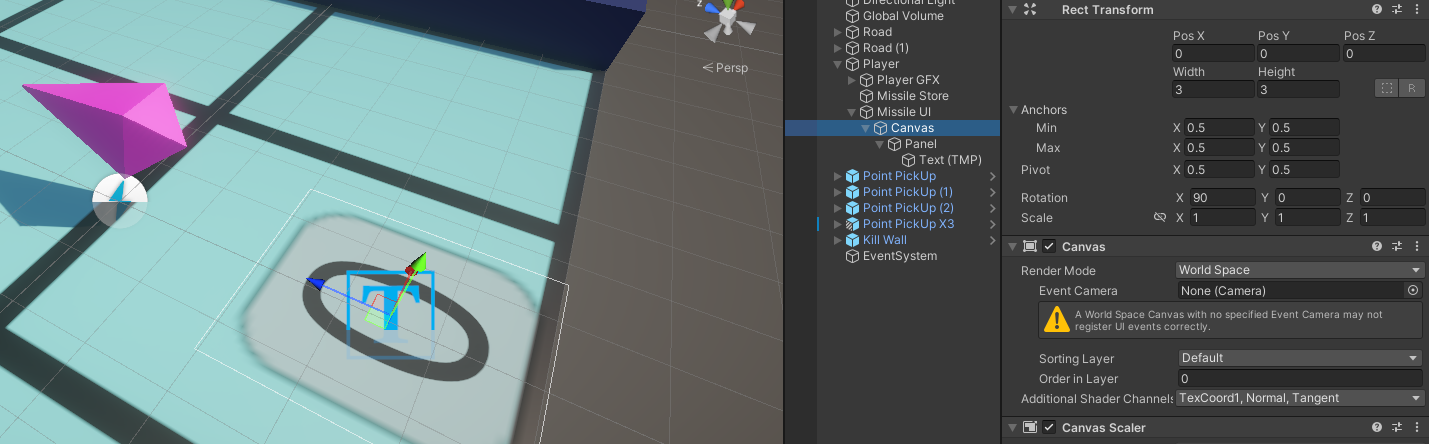

As a child of the Player, create a new empty GameObject Missile UI and add a series of items as consecuative children of each other: UI > Canvas, UI > Panel, UI > Text - TextMeshPro. Configure them the same way as you did the UI stack we just made for the Kill Wall, change the Panel Reference Pixels Per Unit and make the same configuration to the TextMeshPro object.

Also, make sure to set the Render Mode of the Canvas to World Space and be sure to center its rect transform. We will make this Canvas slightly smaller, using a width and height of 3.

Place the Missile UI GameObject along the ground. We want the UI Panel to appear on top of the road slightly behind the Player so position the Missile UI accordingly and then rotate the Canvas 90 degrees on the X-Axis to make it flush against the ground.

The current colors do not contrast very well against our bright road. On the Panel, increase the opacity of the Image component's Color property a bit. Then, on the Text (TMP) object, change the Vertex Color to a dark grey.

Program the UI

Again, this will work almost identically to the last UI we rigged up: Create an Action on the PlayerMissiles script which is invoked whenever the number of _missilePoints changes, and update the UI accordingly.

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

using Random = UnityEngine.Random;

public class PlayerMissiles : MonoBehaviour
{
    public Action<int> OnMissilesChanged;

    [SerializeField] private GameObject _missilePrefab;

    ...

    public void AddPoint(int points)
    {
        _missilePoints += Mathf.Max(0, points);

        OnMissilesChanged?.Invoke(_missilePoints);
        SyncMissilesToPoints();     // Create missiles to catch up with the points
    }

    ...

    public void FireMissilesAtTarget(KillWall killWall)
    {
        int cumulativeDamage = 0;

        for (int i = _missileList.Count - 1; i >= 0 && cumulativeDamage < killWall.HitPoints; i--)
        {
            ...

            OnMissilesChanged?.Invoke(_missilePoints);
        }
    }

    ...

    public int MissilePoints {get => _missilePoints; }
}

Abstract

We invoke the OnMissilesChanged action whenever we gain missile points or fire a missile.

Note that we must add using System; to be able to use Actions. However, both the UnityEngine and System namespace introduce their own, identically-named Random class, which causes an ambigious call error when we make a Random call later in the file.

To fix this, the code on line 6 specifies that Random always refers to the UnityEngine implementation.

Now create another script MissileUI and attach it to the Missile UI -> Panel -> Text (TMP) GameObject.

using UnityEngine;
using TMPro;

[RequireComponent(typeof(TextMeshProUGUI))]
public class MissilesUI : MonoBehaviour
{
    [SerializeField] private PlayerMissiles _playerMissiles;

    private TextMeshProUGUI _tmp;

    private void Awake()
    {
        _tmp = GetComponent<TextMeshProUGUI>();
    }

    private void OnEnable()
    {
        _playerMissiles.OnMissilesChanged += UpdateText;
        UpdateText(_playerMissiles.MissilePoints);
    }

    private void OnDisable()
    {
        _playerMissiles.OnMissilesChanged -= UpdateText;
    }
    private void UpdateText(int missileCount)
    {
        _tmp.text = missileCount.ToString();
    }
}

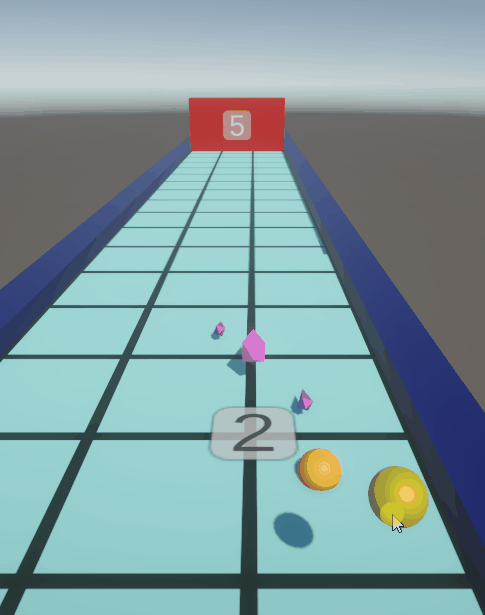

Wow, this looks awfully familiar, doesn't it? Do not forget to populate the Player Missiles property of the MissileUI script with the Player's Player Missiles instance.

---

A fair amount of code has gone into getting what you see above working, good job getting this far!

Chapter 7: Hazards

In order for our game to be engaging, we need to make collecting missiles more challenging.

We will accomplish this by creating Hazard Zones, which will constantly drain the number of missile points the Player has if they enter their trigger volume. This will be detrimental to the player if they accidentally cross them, but it will not severely punish them by instantly destroying them.

In fact, we could actually design some interesting scenarios where it is worthwhile to go through a hazard zone to get some points on the other side.

1. Hazard Zone Prefab
2. Hazard Zone Script
3. Moving Hazard

1) Hazard Zone Prefab

Our Hazard Zones will be rectangular, transparant volumes which the Player can pass through to negative effect.

Create a new empty GameObject "Hazard Zone". Attach a BoxCollider component to the Hazard Zone, but leave its size alone for now. Check the Is Trigger property. As a child of the Hazard Zone, add a 3D cube and remove its BoxCollider component.

We must move the Center: Y property of the Hazard Zone's BoxCollider to 0.5 to make it flush with the road. Further, do the same with the Position:Y of the Cube.

Change the scale of the Hazard Zone transform itself to make both the graphical cube and the trigger collider larger.

Lastly, a new material. Like every other time, we will apply it to the cube and give it a red color. However, you will also change Surface Type from Opaque to Transparent, which will allow us to use the alpha value of the Base Map to control how see-through the material is. Change the color to a reddish color with a lowered alpha value.

Save the Hazard Zone as a prefab.

2) Hazard Zone Script

When the Player enters the trigger volume on the Hazard Zone, their missile points should be drained over time until the leave the volume. We can accomplish this by reducing their missile points by one on some reoccuring interval.

In order to accomplish this, we must give Missile.cs a function to destroy themselves, and PlayerMissiles.cs needs to be upgraded with a public method to deduct missile points, which will then destroy some of the managed missiles to compensate.

...

public void DestroyMissile()
{
    Destroy(gameObject);
}

...

...

public void RemoveMissilePoints(int points)
{
    _missilePoints -= Mathf.Max(0, points);
    _missilePoints = Mathf.Max(0, _missilePoints);  // Prevent negative points

    OnMissilesChanged?.Invoke(_missilePoints);
    SyncMissilesToPoints();
}

...

private void SyncMissilesToPoints()
{
    int missilesToCreate = _missilePoints - _missileList.Count;     // # of missiles needed to sync

    if (missilesToCreate >= 0)
    {
        for (int i = 0; i < missilesToCreate; i++)
        {
            CreateMissile();
        }
    }
    else
    {
        int missilePointsToDestroy = Mathf.Abs(missilesToCreate);

        for (int i = _missileList.Count - 1; i >= 0 && missilePointsToDestroy > 0; i--)
        {
            Missile nextMissile = _missileList[i];
            missilePointsToDestroy -= nextMissile.AttackDamage;

            _missileList.RemoveAt(i);
            nextMissile.DestroyMissile();
        }
    }
}

...

Abstract

Note that since it is possible for missileToCreate to be negative now, SyncMissilesToPoints was upgraded to have separate behavior for when missiles need to be removed. Similarly to firing missiles, we remove missiles from the back of the list (for efficiency purposes) by de-listing them and calling the DestroyMissile method we created.

---

Create a new script HazardZone.cs, and attach it to the Hazard Zone object as a component.

using UnityEngine;

[RequireComponent(typeof(Collider))]
public class HazardZone : MonoBehaviour
{
    [SerializeField] private float _ticksPerSecond = 1f;

    private PlayerMissiles _targetPlayerMissiles;

    private bool _damagingPlayer;
    private float _tickInterval;
    private float _timeSinceLastTick;

    private void Awake()
    {
        _tickInterval = 1 / _ticksPerSecond;
        _damagingPlayer = false;
        _timeSinceLastTick = _tickInterval;
    }

    private void Update()
    {
        if (_damagingPlayer)
        {
            // Accumulate time, damage the player and reset the accumulation when the interval is reached.
            _timeSinceLastTick += Time.deltaTime;
            if (_timeSinceLastTick >= _tickInterval)
            {
                DamagePlayer();
                _timeSinceLastTick = 0f;
            }
        }
    }

    private void DamagePlayer()
    {
        _targetPlayerMissiles.RemoveMissilePoints(1);
    }

    private void OnTriggerEnter(Collider other)
    {
        PlayerMissiles playerMissiles = other.gameObject.GetComponent<PlayerMissiles>();
        if (playerMissiles != null)
        {
            _damagingPlayer = true;
            _timeSinceLastTick = (3 * _tickInterval) / 4;   // Very small grace period
            _targetPlayerMissiles = playerMissiles;
        }
    }

    private void OnTriggerExit(Collider other)
    {
        PlayerMissiles playerMissiles = other.gameObject.GetComponent<PlayerMissiles>();
        if (playerMissiles != null)
        {
            _damagingPlayer = false;
            _targetPlayerMissiles = null;
        }
    }
}

Abstract

We start by defining a _ticksPerSecond field which describes how many times the player should be damaged per second that they remain in the trigger volume. This is then internally converted to a _tickInterval value (by taking 1 / _ticksPerSecond) to be equal to the number of seconds it takes to do one tick of damage.

We do this because it is easier to understand the damage rate as a number of ticks per second getting larger as it becomes more threatening, rather than an interval getting smaller as it becomes more dangerous (which is what the script needs to know to do the damage).

When a PlayerMissiles object enters the volume, it is tracked and _damagingPlayer is set to true to allow our damage logic to occur per-frame. We also pre-set the tick timer _timeSinceLastTick to 75% so they player has a very small grace period before they take their first instance of contact damage with the zone.

Per update, we accumulate time into _timeSinceLastTick using Time.deltaTime, and if it is greater than the interval, the player is damaged and the timer resets.

When the PlayerMissiles exits the volume, we untrack the object and stop damaging the player.

---

Make your Hazard Zone a bit longer and push back your Kill Wall a bit (adding another road segment if necessary). I personally bumped up the Ticks Per Second property to 2. Test it out in Play Mode!

3) Moving Hazard

For our very last addition to our prototype, we will up the ante a little by making a moving hazard. This hazard will Ping-Pong horizontally along the road, so the player will need to actively dodge it.

We will create a general purpose script which can Ping-Pong something on the X-Axis. Create a new script XPingPong.cs.

using UnityEngine;

public class XPingPong : MonoBehaviour
{
    [SerializeField] private float _xMinimum = -8f;
    [SerializeField] private float _xMaximum = 8f;

    [SerializeField] private float _movementSpeed = 5f;

    private bool _movingToMaximum = true;

    private Vector3 _maximumPosition;
    private Vector3 _minimumPosition;

    private void Awake()
    {
        _maximumPosition = new Vector3(_xMaximum, transform.position.y, transform.position.z);
        _minimumPosition = new Vector3(_xMinimum, transform.position.y, transform.position.z);
    }

    private void Update()
    {
        if (_movingToMaximum)
        {
            transform.position = Vector3.MoveTowards(transform.position, _maximumPosition, _movementSpeed * Time.deltaTime);
            if (Vector3.Distance(transform.position, _maximumPosition) <= 0.5f)
            {
                _movingToMaximum = false;
            }
        }
        else
        {
            transform.position = Vector3.MoveTowards(transform.position, _minimumPosition, _movementSpeed * Time.deltaTime);
            if (Vector3.Distance(transform.position, _minimumPosition) <= 0.5f)
            {
                _movingToMaximum = true;
            }
        }
    }
}

Abstract

We define a x minimum and maximum for the transform to translate between. That range is then converted to two positions _maximumPosition and _minimumPosition.

Per Update, we will move towards either the _maximumPosition or _minimumPosition, swapping between the two as we reach either of them. Pretty simple!

We can now add this script to any object we want to ping pong on our road. You could even add it to your Point PickUps, but you would need to create a third intermediary script to disable the ping-pong behavior when the pick up starts flying at the Player, which may be a good exercise for your own time.

Speaking of bonus exercise, you could also try creating a Spinning hazard which has a constant Y-Axis rotation. This would actually be easier to implement as well, since you do not need to cache positional endpoints. The Transform.Rotate method would work well for making the spinning behavior. Give it a try on your own!

Note, you would likely need to crank up the Ticks Per Second on these moving hazards, as they may pass out of the player before they can do any worry-some damage.

Chapter 8: Level Creation & Building

We have a little bit more housekeeping to do before our little prototype is finished! We will want to flesh out our level to show off more mechanics, add some controls which allow us to reset and exit our game, and create a full build of the game!

1. PointPickUp.cs Fix
2. Level Creation
3. GameManager
4. Creating a Build

1) PointPickUp.cs Fix

We need to make one small change to our PointPickUp.cs script. As you may have noticed, rotating one of these pick ups on the Y-Axis can cause their tracking logic to completely break. This is because Transform.Translate works according to local space.

To fix this, we must simply unparent pick ups once they start flying and ensure they are facing along the forward direction, similar to what we do for firing missiles.

private void OnTriggerEnter(Collider other)

...

    {
        // Try to find PlayerMissiles Component on entering GO.
        PlayerMissiles playerCheck = other.GetComponent<PlayerMissiles>();

        // If component was found...
        if (playerCheck != null)
        {
            transform.parent = null;
            transform.rotation = Quaternion.LookRotation(Vector3.forward);
            _targetPlayerMissiles = playerCheck;
            _velocityDirection = Vector3.Normalize(playerCheck.transform.position - transform.position);
        }
    }
}

2) Level Creation

We ought to extend our road out a bunch and add more content to it in order to show off what we have made!

Hierarchy Organization

Before we start, create a new empty GameObject Environment and reset its Transform component. We will place almost every physical GameObject that composes our level as a child of it- The road segments, the Point PickUps, any Kill Walls, and Hazard Zones. I will also fold our Directional Light and Global Volume in there as well. We will not include the Camera Rig or Player, in this Environment object, though.

Furthermore, we will create a few more empty GameObjects in the Environment: Roads, Pick Ups, Kill Walls, and Hazard Zones, which we will move all objects of the respective types under.

This will make our hierarchy MUCH cleaner. It also helps us separate important GameObjects like our Camera Rig and our Player out from less important features.

Level Building

Add a few more road segments to the level and fill it up with Kill Walls, Hazards, and Pick Ups in various configurations to make an interesting level! At the end of the level, just create a Kill Wall with too much health to destroy so the player does not go off the end of the game. Try using some moving hazards as well!

The following is a little bit of advice on this process.

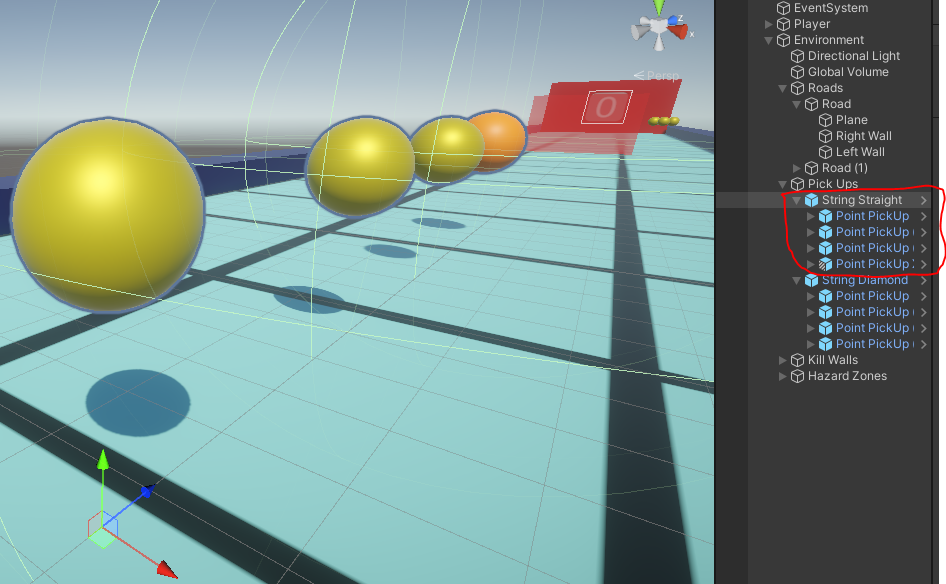

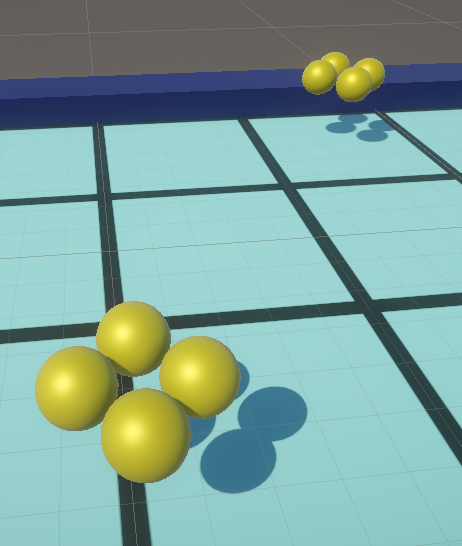

Pick Up Prefabs

It is pretty satisfying to pick up multiple points in a "string", so let's just create some Point String prefabs which are little groups of pick ups in a sequence. I also created a diamond string of four points.

Pick Up and Hazard Synergy

By combining hazards with pick ups intelligently, we can create sections of our levels which allow some skill expression by the player, which makes our rather simple game much more interesting.

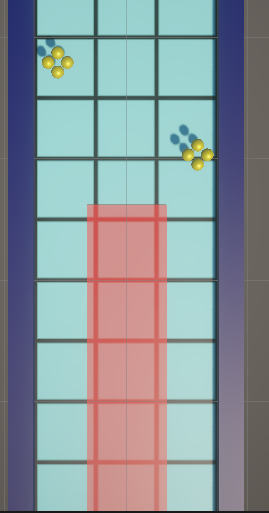

Consider the following placement:

This hazard forces the player to either the left or right side of the road, and they will be given a group of points if they choose either path. However, if the player chooses the right path and they cut left directly after they clear the hazard, they can collect the points on the left side without taking damage from the hazard.

Here is another scenario:

In this placement, the three orange pick ups are unreachable without hitting a hazard zone. However, it is actually worthwhile to lose one or two missiles by cutting through the hazard volume in order to pick up the nine points from the orange group.

It is even worth it when you factor in the opportunity cost of missing the group of four yellow pick ups on the left side, which is what would conventionally seem more appealing.

The interaction between these two game elements is much more engaging than they are individually. Designing game mechanics which play off of each other synergistically is a great way to do more with less- which is a great principle to stride towards when you are doing indie development!

3) GameManager

When we want to reset or exit our game, we simply exited and entered Play Mode to reset the scene. This is not a good solution for when our game is built though, as the player would be unable to close the game and would need to re-open it every time they lose!

We will make a pretty brief script that will allow the player to reload the scene and exit the game on demand.

Add New Controls

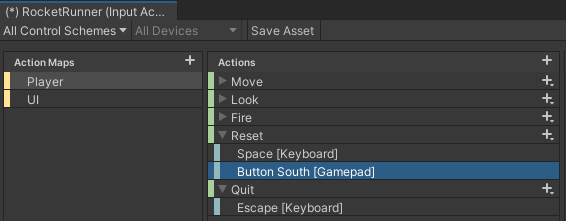

We will want to create two input actions for this control. Space will reset our game and Escape will quit.

Using the project window, open the Input Actions assets we created a while ago to map player input. Select the Player Action Map and create a Reset and Quit action, bound to Space and Escape respectively (Use the +v button to add a new binding, and set the path to the desired button).

Again, do not forget to hit the Save Asset button!

GameManager

First, in your Scenes folder in the Project window, rename the SampleScene to Main, which is a better name for our main scene.

To the scene, create a new empty object (not under the Environment GameObject) and name it Game Manager. You will also need to add a PlayerInput component and set the Actions property to your Input Actions asset.

Create a script GameManager and attach it to the Game Manager as a component.

using UnityEngine;
using UnityEngine.InputSystem;
using UnityEngine.SceneManagement;

[RequireComponent(typeof(PlayerInput))]
public class GameManager : MonoBehaviour
{
    private void ResetLevel()
    {
        SceneManager.LoadScene("Main");
    }

    private void QuitGame()
    {
        Application.Quit(0);
    }

    private void OnReset(InputValue inputValue) => ResetLevel();
    private void OnQuit(InputValue inputValue) => QuitGame();
}

Abstract

The UnityEngine.SceneManagement allows us access to the SceneManager, which enables usage of the SceneManager which can load scenes. In the ResetLevel method, we simply tell it to load the Main scene, which will essentially reload the level from scratch.

The QuitGame method does exactly that- closes the application with an exit code of 0 (An OK status code).

Both of those methods are invoked by a Input Action response method OnReset or OnQuit. Note that you could just execute those two calls in the Input Action response bodies themselves, but it is usually better practice to just have them call methods instead.

If you enter Play Mode, you can now use Space to reset the level. Quitting will not work in Play Mode, however!

4) Creating a Build

The last thing we need to do is make a build of our game so that it can be shared!

In the top right of the Unity Editor, select File > Build Settings. Ensure that your Main scene shows up in the scenes list and the platform selected is Windows, Mac, Linux, then select Build.

A file selector will open to ask where you would like to build to, which begins one level above your Assets folder. Here, create a new folder called Builds, and a new folder within that called Rocket Runner 0.1.0, and select that as your build folder.

Once it is done, you can open that folder to find your executable to run the game. The entire Rocket Runner 0.1.0 folder is what you would send or upload somewhere to share your game at this point!

Note that when you are developing a larger project, you should test builds of your game somewhat frequently, do not wait until you are finished to test your builds for the first time!

Conclusion

Congratulations, you've finished this pretty lengthy tutorial! \o/

Even though our game looks pretty simple on the surface, you have actually learned some good stuff to springboard you into your own projects:

• Physics and non-physics driven movement
• Collider and trigger use and event response
• Work on some more complex, composited GameObjects
• Using Actions to create custom events
• World-space user interfaces
• Some vector maths practice

Where Do I Go From Here?

Game Development is a deeply practice driven discipline. Before you start working on your dream projects, find long-form guides that can bring you through the process of building a whole, small game, not just a couple features. At the end of the day, your ability to make good games will depend on your knowledge of the entire game-making process, so absorbing a good volume of comprehensive guides will make you a strong developer more so than anything when you are starting out.

Full video games can easily become some of the most complicated pieces of software you will ever work on, so do not be surprised to find out that gaining proficiency will be a slow process that will take a lot of time and dedication. The best thing you can do is pace yourself and set a schedule of time dedicated to it!

What Else Is There Here For Me?

I very particularly made Rocket Runner to be a game which can be expanded in many different ways. It is a good baseline by which many improvements could be made- all of which would be individual tutorials all on their own. Some examples of improvements that could be made are as follows:

• We could turn our game into an endless runner by procedurally generating new road segments. The difficulty could be ramped up as time goes along.
  • This would be a major improvement towards making it into a very solid game. Definitely come back to this project and give this a try if nothing else once you have more experience.
• Many, many visual effects could be added:
  • Missile explosion particle effects.
  • Particle or debris effects when the Player or Kill Walls are destroyed.
  • Point PickUps could be made prettier, turned into orb-like pick ups.
  • Trails on missiles, as well as making them fly at Kill Walls in a more interesting pattern.
  • A better looking skybox and some lighting effects.
• Sound effects could be added to movement, explosions, and missile firing. Some music would be nice too.
• A main menu and pause screen would make the game a bit less clunky. Maybe a leaderboard for distance traveled too?

Ideally in the future, this tutorial will be expanded to tackle some of the above improvements in some additional modules.
